Front Brake Removal

Brake. Lexus Is250, Is220D. Gse20 Ale20
Brake. Lexus Is250, Is220D. Gse20 Ale20

  1. REMOVE FRONT WHEEL

  2. DRAIN BRAKE FLUID

  3. REMOVE FRONT DISC BRAKE CYLINDER ASSEMBLY

Front Brake -- Removal


HINT:
  1. Use the same procedures for the RH side and LH side.
  2. The procedures listed below are for the LH side.


1. REMOVE FRONT WHEEL


2. DRAIN BRAKE FLUID
NOTICE:
If brake fluid leaks onto any painted surface, wash off or remove the brake fluid completely.


3. REMOVE FRONT DISC BRAKE CYLINDER ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

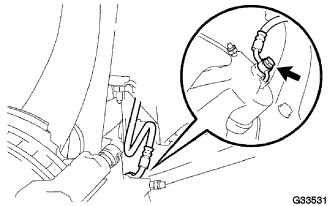

  1. Remove the union bolt and gasket from the disc brake cylinder assembly, then disconnect the flexible hose.



    Lexus Is250, Is220D. Gse20 Ale20.Brake.Brake System.Front Brake Removal

  1. Remove the 2 bolts and disc brake cylinder assembly.
