DTC P0500 Vehicle Speed Sensor "A" |
DESCRIPTION

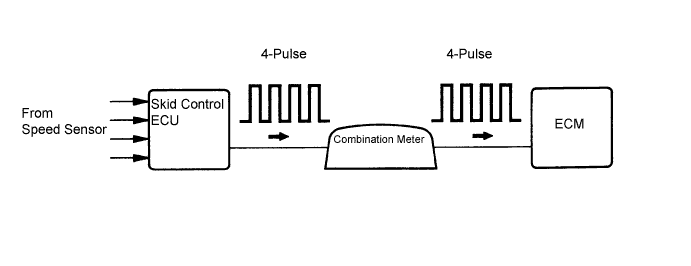

The speed sensor detects the wheel speed and sends the appropriate signals to the skid control ECU. The skid control ECU converts these wheel speed signals into a 4-pulse signal and outputs it to the ECM via the combination meter. The ECM determines the vehicle speed based on the frequency of these pulse signals.DTC No.
| DTC Detection Condition
| Trouble Area
|
P0500
| Vehicle speed signal from vehicle speed sensor is cut for 0.14 sec. or more while cruise control is in operation
| - Vehicle speed sensor
- Vehicle speed sensor signal circuit
- Combination meter
- ECM
|

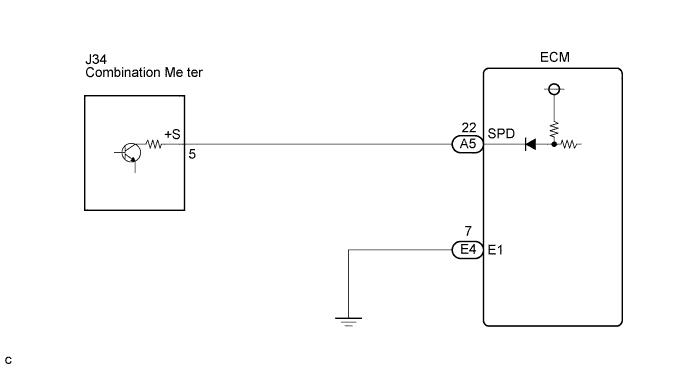

WIRING DIAGRAM
INSPECTION PROCEDURE
- HINT:
- Read freeze frame data using the intelligent tester. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred (Click here).
| 1.INSPECT SPEEDOMETER (METER OPERATION) |
Drive the vehicle and check if operation of the speedometer in the combination meter is normal.
- HINT:
- The vehicle speed sensor is operating normally if the speedometer display is normal.
| | CHECK SPEEDOMETER CIRCUIT |
|
|
Shift the lever to the neutral position.
Jack up the vehicle.
Turn the ignition switch ON.

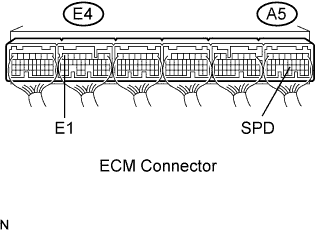

Measure the voltage of the ECM connectors as the wheel is turned slowly.
- Standard:
Tester Connection
| Specified Condition
|
A5-22 (SPD) - E4-7 (E1)
| Generated intermittently
|
- HINT:

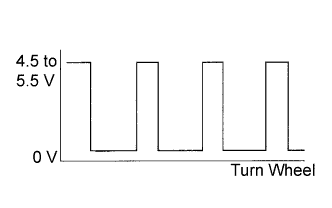

- The output voltage should fluctuate up and down similarly to the diagram on the left when the wheel is turned slowly.
| | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
