Generator Reassembly

Using SST and a press, press in a new generator drive end frame bearing.

SST

09950-60010(09951-00470)
09950-70010(09951-07100)

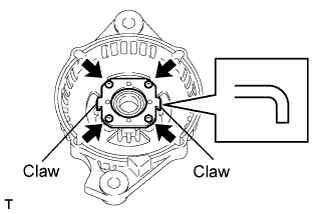

Fit the tabs on the retainer plate into the cutouts on the drive end frame to install the retainer plate.

Install the 4 screws.

Torque:

2.3 N*m{23 kgf*cm, 20 in.*lbf}

Place the drive end frame on the clutch pulley.

Install the rotor assembly to the drive end frame.

Place a new generator washer on the generator rotor.

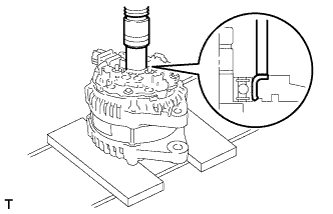

Using SST and a press, press in the generator coil assembly to the drive end frame.

SST

09612-70100(09612-07240)

Install the generator coil assembly with the 4 bolts.

Torque:

5.8 N*m{59 kgf*cm, 51 in.*lbf}

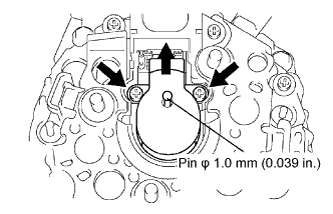

While pushing the 2 brushes into the generator brush holder assembly, insert a φ1.0 mm (0.039 in.) pin into the brush holder hole.

Install the generator brush holder assembly to the generator coil with the 2 screws.

Torque:

1.8 N*m{18 kgf*cm, 16 in.*lbf}

Pull out the pin from the generator brush holder.

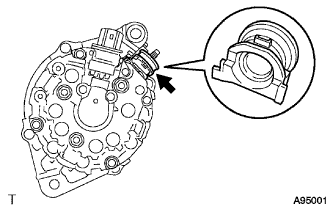

Install the terminal insulator to the generator coil.

Install the generator rear end cover to the generator coil with the 3 nuts.

Torque:

4.6 N*m{47 kgf*cm, 41 in.*lbf}

Temporarily install the clutch pulley onto the rotor shaft.

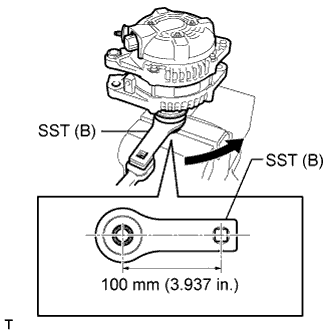

Set SST (A) and (B).

SST

09820-63020

Clamp SST (A) in a vise.

Place the rotor shaft end into SST (A).

Fit SST (B) to the clutch pulley.

Tighten the pulley by turning SST (B) in the direction shown in the illustration.

Torque:

111 N*m{1,127 kgf*cm, 81 ft.*lbf}

NOTICE:

The torque shown above should be used for tightening without using SST. When the SST is used for tightening, the torque should be calculated based on the length of the SST (Click here).

Remove the generator assembly from the SST.

Check that the clutch pulley rotates smoothly.

Install the new clutch pulley cap to the clutch pulley.
