Fuel Pump Resistor Removal

Engine. Lexus Is250, Is220D. Gse20 Ale20
4Gr-Fse Fuel. Lexus Is250, Is220D. Gse20 Ale20

  1. REMOVE COOL AIR INTAKE DUCT SEAL

  2. REMOVE ENGINE ROOM RH SIDE COVER

  3. REMOVE FUEL PUMP RESISTOR

Fuel Pump Resistor -- Removal



1. REMOVE COOL AIR INTAKE DUCT SEAL


    Lexus Is250, Is220D. Gse20 Ale20

  1. Remove the 11 clips and intake duct seal.



2. REMOVE ENGINE ROOM RH SIDE COVER


    Lexus Is250, Is220D. Gse20 Ale20.4Gr-Fse Fuel.Fuel System.Fuel Pump Resistor Removal

  1. Remove the 2 clips and side cover.



3. REMOVE FUEL PUMP RESISTOR


    Lexus Is250, Is220D. Gse20 Ale20

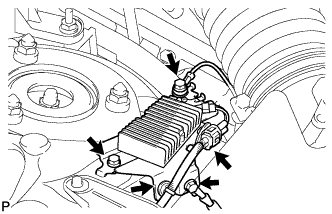

  1. Disconnect the connector and clamp from the fuel pump resistor.

  1. Remove the 3 bolts and fuel pump resistor, and disconnect the ground wires.
