DTC B1451/51 Compressor Solenoid Circuit |
DESCRIPTION
In this circuit, the compressor receives a refrigerant compression demand signal from the air conditioning amplifier.Based on this signal, the compressor changes the amount of compressor output.DTC No.
| DTC Detection Condition
| Trouble Area
|
B1451/51
| Open or short in solenoid of the externally changeable compressor circuit
| - A/C compressor
- Harness and connector between A/C amplifier and solenoid of externally changeable compressor
- A/C amplifier
|

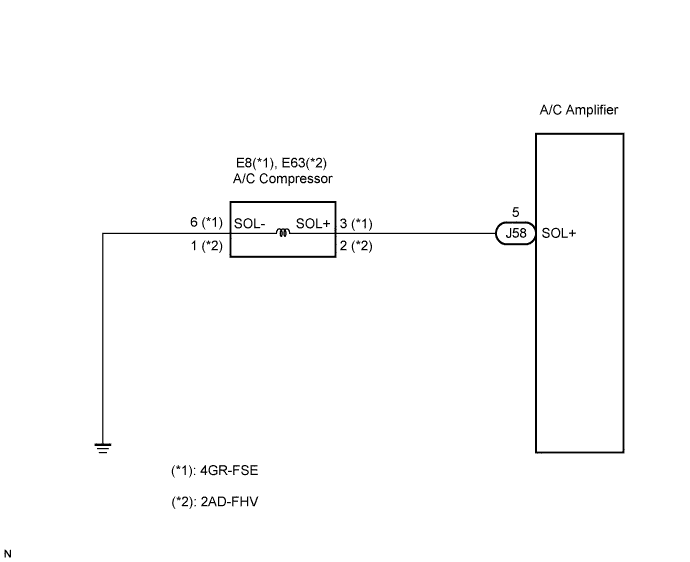

WIRING DIAGRAM
INSPECTION PROCEDURE
Check the engine type.
- Result:
Result
| Proceed to
|
4GR-FSE (Gasoline engine)
| A
|
2AD-FHV (Diesel engine)
| B
|
Disconnect the A/C compressor connector.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection
| Condition
| Specified Condition
|

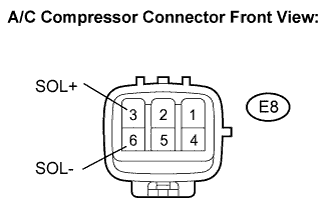

E8-3 (SOL+) - E8-6 (SOL-)
| 20°C (68°F)
| 10 to 11 Ω
|
3.CHECK WIRE HARNESS (A/C COMPRESSOR - BODY GROUND) |
Disconnect the A/C compressor connector.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection
| Condition
| Specified Condition
|

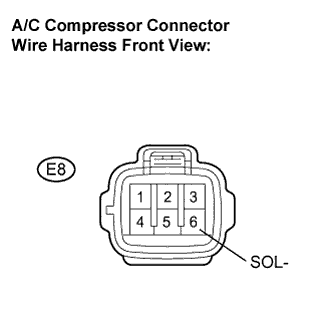

E8-6 (SOL-) - Body ground
| Always
| Below 1 Ω
|
| REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
4.CHECK WIRE HARNESS (A/C COMPRESSOR - A/C AMPLIFIER) |
Disconnect the A/C compressor connector.
Disconnect the A/C amplifier connector.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection
| Condition
| Specified Condition
|
J58-5 (SOL+) - E8-3 (SOL+)
| Always
| Below 1 Ω
|
J58-5 (SOL+) - Body ground
| Always
| 10 kΩ or higher
|
- Result:
Result
| Proceed to
|
NG
| A
|
OK (When troubleshooting according to the PROBLEM SYMPTOMS TABLE)
| B
|
OK (When troubleshooting according to the DTC)
| C
|
| PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE |
|
|
| REPLACE AIR CONDITIONING AMPLIFIER |
|
|
A |
|
|
|
REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
Disconnect the A/C compressor connector.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection
| Condition
| Specified Condition
|

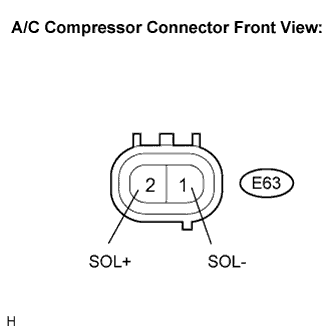

E63-2 (SOL+) - E63-1 (SOL-)
| 20°C (68°F)
| 10 to 11 Ω
|
6.CHECK WIRE HARNESS (A/C COMPRESSOR - BODY GROUND) |
Disconnect the A/C compressor connector.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection
| Condition
| Specified Condition
|

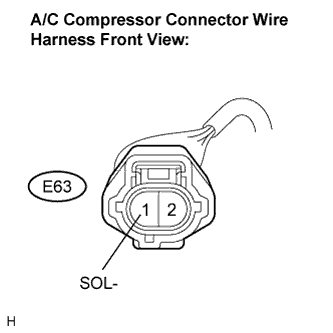

E63-1 (SOL-) - Body ground
| Always
| Below 1 Ω
|
| REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
7.CHECK WIRE HARNESS (A/C COMPRESSOR - A/C AMPLIFIER) |
Disconnect the A/C compressor connector.
Disconnect the A/C amplifier connector.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection
| Condition
| Specified Condition
|

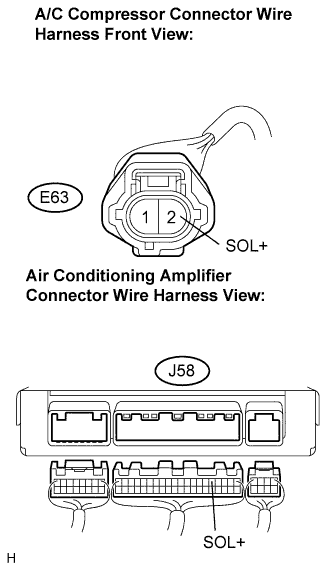

J58-5 (SOL+) - E63-2 (SOL+)
| Always
| Below 1 Ω
|
J58-5 (SOL+) - Body ground
| Always
| 10 kΩ or higher
|
- Result:
Result
| Proceed to
|
NG
| A
|
OK (When troubleshooting according to the PROBLEM SYMPTOMS TABLE)
| B
|
OK (When troubleshooting according to the DTC)
| C
|
| PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE |
|
|
| REPLACE AIR CONDITIONING AMPLIFIER |
|
|
A |
|
|
|
REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
