Rear Axle Hub Bolt Replacement

Remove the 2 bolts, and disconnect the rear disc brake caliper assembly.

NOTICE:

Use wire or equivalent to prevent the brake caliper from hanging down by the flexible hose.

Remove the No.1 caliper plates from the brake caliper.

Put matchmarks on the rear disc and the axle hub.

Remove the read disc.

Using SST, remove the rear axle hub bolt.

SST

09628-10011

NOTICE:

Do not damage the threads of the hub bolt.

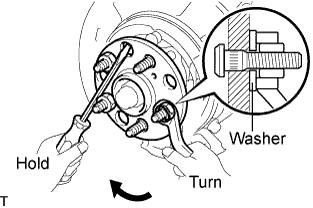

Install a washer and nut to a new bolt as shown in the illustration.

Using a screwdriver or equivalent to hold the rear axle hub, install the rear axle hub bolt by tightening the nut.

NOTICE:

Do not damage the threads of the hub bolt.

Aligning the matchmarks, install the rear disc.

HINT:

When replacing the rear disc with a new one, select the installation position where the rear disc has the minimum runout.

Install the rear disc brake caliper assembly and No. 1 caliper plates with the 2 bolts.

Torque:

54 N*m{551 kgf*cm, 40 ft.*lbf}

NOTICE:

1. Do not twist the rear brake hose when installing the rear disc brake caliper.

2. Make sure that there are no foreign objects or damage to the threads.

3. Do not overtighten the bolts because the hub carrier is made of aluminum and may be damaged.
