Cruise Control System (For 2Ad-Fhv) Tc And Cg Terminal Circuit
DESCRIPTION
WIRING DIAGRAM
INSPECTION PROCEDURE
CHECK WIRE HARNESS (TERMINAL TC of DLC3 - ECM)
CHECK WIRE HARNESS (TERMINAL CG of DLC3 - BODY GROUND)
CHECK WIRE HARNESS (TERMINAL TC of DLC3 - BODY GROUND)
CRUISE CONTROL SYSTEM (for 2AD-FHV) - TC and CG Terminal Circuit |
DESCRIPTION
Connecting terminals TC and CG of the DLC3 causes the system to enter self-diagnostic mode. If a malfunction is present, DTCs will be output.- HINT:
- When a particular warning light remains blinking, a ground short in the wiring of terminal TC of the DLC3 or an internal ground short in the relevant ECU is suspected.

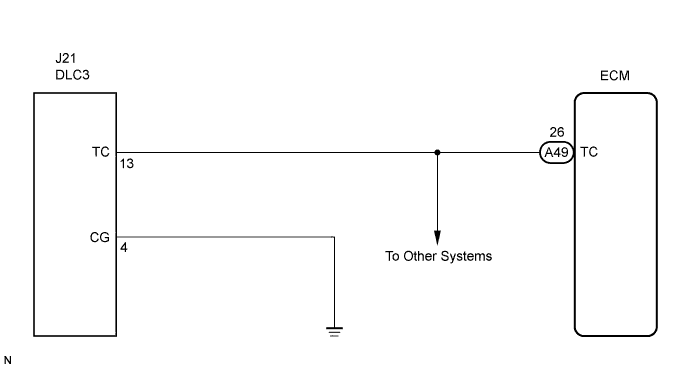

WIRING DIAGRAM
INSPECTION PROCEDURE

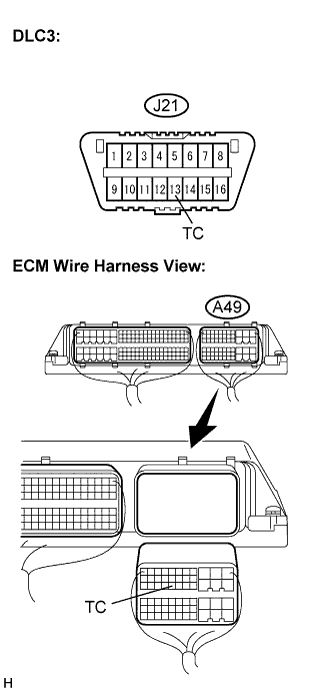

| 1.CHECK WIRE HARNESS (TERMINAL TC of DLC3 - ECM) |
Disconnect the A49 connector from the ECM.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection
| Condition
| Specified Condition
|
A49-26 (TC) - J21-13 (TC)
| Always
| Below 1 Ω
|
| | REPAIR OR REPLACE HARNESS OR CONNECTOR (DLC3 - ECM) |
|
|
| 2.CHECK WIRE HARNESS (TERMINAL CG of DLC3 - BODY GROUND) |
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester connection
| Condition
| Specified condition
|
J21-4 (CG) - Body ground
| Always
| Below 1 Ω
|
| | REPAIR OR REPLACE HARNESS OR CONNECTOR (DLC3 - BODY GROUND) |
|
|
| 3.CHECK WIRE HARNESS (TERMINAL TC of DLC3 - BODY GROUND) |
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection
| Condition
| Specified Condition
|
J21-13 (TC) - Body ground
| Always
| 10 kΩ or higher
|
| | REPAIR OR REPLACE HARNESS OR CONNECTOR OR EACH ECU |
|
|
| OK |
|
|
|
| PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE |
|
