Front Brake Flexible Hose Removal

Brake. Lexus Is250, Is220D. Gse20 Ale20
Brake. Lexus Is250, Is220D. Gse20 Ale20

  1. REMOVE FRONT WHEEL

  2. DRAIN BRAKE FLUID

  3. REMOVE FRONT BRAKE FLEXIBLE HOSE

Front Brake Flexible Hose -- Removal


HINT:
  1. Use the same procedure for the RH side and LH side.
  2. The procedures listed below are for the LH side.


1. REMOVE FRONT WHEEL


2. DRAIN BRAKE FLUID


3. REMOVE FRONT BRAKE FLEXIBLE HOSE


    Lexus Is250, Is220D. Gse20 Ale20

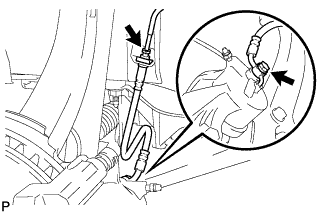

  1. Remove the brake line with SST while holding the front brake flexible hose with a wrench.

    SST
    09023-00101
    NOTICE:
    1. Do not bend or damage the brake tube.
    2. Do not allow any foreign matter such as dirt and dust to enter the brake tube from the connecting points.

  1. Remove the clip.

  1. Remove the union bolt, the front brake flexible hose and gasket.
