Curtain Shield Airbag Assembly Removal

Restraints. Lexus Is250, Is220D. Gse20 Ale20
Supplemental Restraint System. Lexus Is250, Is220D. Gse20 Ale20

  1. PRECAUTION

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

  3. REMOVE ROOF HEADLINING ASSEMBLY

  4. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY

Curtain Shield Airbag Assembly -- Removal


HINT:
  1. Use the same procedures for the RH side and LH side.
  2. The procedures listed below are for the LH side.


1. PRECAUTION
CAUTION:
Be sure to read "PRECAUTION" thoroughly before servicing (Click here).


2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.


3. REMOVE ROOF HEADLINING ASSEMBLY
HINT:
Refer to the procedures up to "REMOVE ROOF HEADLINING ASSEMBLY" (Click here).


4. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY

  1. Disconnect the connector.

    NOTICE:
    When handling the airbag connector, take care not to damage the airbag wire harness.

  1. Remove the 2 clips.

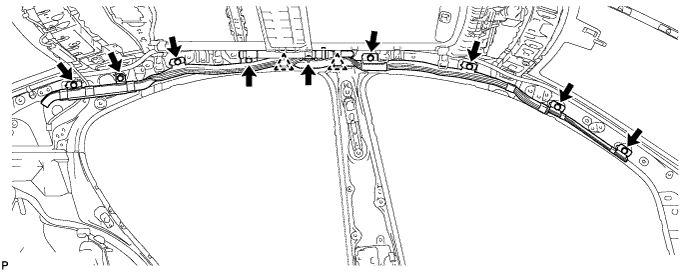

  1. Remove the 9 bolts and curtain shield airbag assembly.
