Front Passenger Airbag Assembly On-Vehicle Inspection

Restraints. Lexus Is250, Is220D. Gse20 Ale20
Supplemental Restraint System. Lexus Is250, Is220D. Gse20 Ale20

  1. INSPECT CURTAIN SHIELD AIRBAG ASSEMBLY (VEHICLE NOT INVOLVED IN COLLISION)

  2. INSPECT CURTAIN SHIELD AIRBAG ASSEMBLY (VEHICLE INVOLVED IN COLLISION AND AIRBAG HAS NOT DEPLOYED)

Front Passenger Airbag Assembly -- On-Vehicle Inspection



1. INSPECT CURTAIN SHIELD AIRBAG ASSEMBLY (VEHICLE NOT INVOLVED IN COLLISION)

  1. Perform a diagnostic system check (Click here).



    Lexus Is250, Is220D. Gse20 Ale20

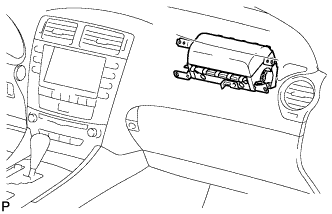

  1. With the front passenger airbag assembly installed on the vehicle, perform a visual check. If there are any defects as mentioned below, replace the instrument panel with a new one:

    1. Cuts, minute cracks or marked discoloration on the instrument panel around the front passenger airbag assembly.


2. INSPECT CURTAIN SHIELD AIRBAG ASSEMBLY (VEHICLE INVOLVED IN COLLISION AND AIRBAG HAS NOT DEPLOYED)

  1. Perform a diagnostic system check (Click here).



    Lexus Is250, Is220D. Gse20 Ale20

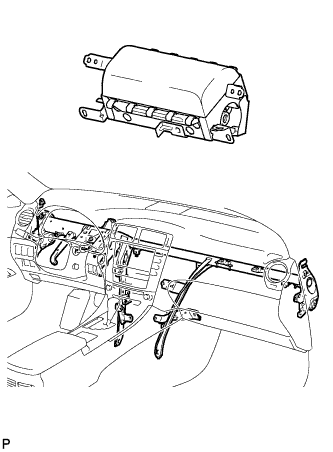

  1. With the front passenger airbag assembly removed from the vehicle, perform a visual check. If there are any defects as mentioned below, replace the front passenger airbag assembly, instrument panel or instrument panel reinforcement with a new one:

    1. Cuts, minute cracks or marked discoloration on the front passenger airbag assembly.
    2. Cracks or other damage to the connectors.
    3. Deformation or cracks on the instrument panel or instrument panel reinforcement.
    CAUTION:
    Be sure to follow the correct removal and installation procedures.
