Front Passenger Airbag Assembly Removal

Restraints. Lexus Is250, Is220D. Gse20 Ale20
Supplemental Restraint System. Lexus Is250, Is220D. Gse20 Ale20

  1. PRECAUTION

  2. DISCONNECT BATTERY NEGATIVE TERMINAL

  3. REMOVE FRONT DOOR SCUFF PLATE (w/o Illumination)

  4. REMOVE FRONT DOOR SCUFF PLATE (w/ Illumination)

  5. REMOVE FRONT DOOR OPENING TRIM COVER

  6. REMOVE INSTRUMENT SIDE PANEL

  7. REMOVE NO.2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

  8. REMOVE FRONT PASSENGER SIDE AIRBAG ASSEMBLY

  9. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

  10. DISCONNECT INSTRUMENT PANEL WIRE ASSEMBLY

  11. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

  12. REMOVE HEATER TO REGISTER NO.3 DUCT

  13. REMOVE SIDE DEFROSTER NOZZLE NO.2 DUCT

  14. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY

Front Passenger Airbag Assembly -- Removal



1. PRECAUTION
CAUTION:
Be sure to read "PRECAUTION" thoroughly before servicing (Click here).


2. DISCONNECT BATTERY NEGATIVE TERMINAL
CAUTION:
Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.


3. REMOVE FRONT DOOR SCUFF PLATE (w/o Illumination)


    Lexus Is250, Is220D. Gse20 Ale20.Supplemental Restraint System.Airbag System.Front Passenger Airbag Assembly Removal

  1. Put protective tape around the front door scuff plate.

  1. Using a moulding remover, disengage the 4 clips.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Disengage the 7 claws and remove the front door scuff plate LH.



4. REMOVE FRONT DOOR SCUFF PLATE (w/ Illumination)


    Lexus Is250, Is220D. Gse20 Ale20.Supplemental Restraint System.Airbag System.Front Passenger Airbag Assembly Removal

  1. Put protective tape around the front door scuff plate.

  1. Using a moulding remover, disengage the 4 clips.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Disengage the 7 claws and remove the front door scuff plate LH.

  1. Disconnect the connector.



5. REMOVE FRONT DOOR OPENING TRIM COVER


    Lexus Is250, Is220D. Gse20 Ale20

  1. Disengage the 6 claws and remove the front door opening trim cover LH.



6. REMOVE INSTRUMENT SIDE PANEL


    Lexus Is250, Is220D. Gse20 Ale20

  1. Using a moulding remover, disengage the 5 claws and 3 clips, and then remove the side instrument panel LH.



7. REMOVE NO.2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

  1. Using a moulding remover, disengage the 4 clips and remove the No. 2 instrument panel under cover sub-assembly.



8. REMOVE FRONT PASSENGER SIDE AIRBAG ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

  1. Remove the 3 bolts and front passenger side knee airbag assembly.

  1. Disconnect the connector.

    NOTICE:
    When handling the airbag connector, take care not to damage the airbag wire harness.


9. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

  1. Remove the 5 screws <E>.

  1. Disengage the 2 claws.

  1. Disconnect the connectors and remove the glove compartment door assembly.



10. DISCONNECT INSTRUMENT PANEL WIRE ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20.Supplemental Restraint System.Airbag System.Front Passenger Airbag Assembly Removal

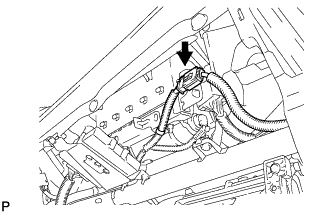

  1. Disconnect the connector.



11. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
HINT:
Refer to the procedures up to "REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY" (Click here).


12. REMOVE HEATER TO REGISTER NO.3 DUCT


    Lexus Is250, Is220D. Gse20 Ale20

  1. Remove the 3 screws <F> and the No. 3 heater to register duct.



13. REMOVE SIDE DEFROSTER NOZZLE NO.2 DUCT


    Lexus Is250, Is220D. Gse20 Ale20

  1. Remove the screw <F> and the side No. 2 defroster nozzle duct.



14. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

  1. Remove the 2 screws.



    Lexus Is250, Is220D. Gse20 Ale20.Supplemental Restraint System.Airbag System.Front Passenger Airbag Assembly Removal

  1. Disengage the 5 hooks (A).

  1. Disengage the 5 hooks (B) and remove the front passenger airbag assembly from the instrument panel.



    Lexus Is250, Is220D. Gse20 Ale20.Supplemental Restraint System.Airbag System.Front Passenger Airbag Assembly Removal

  1. Disconnect the 2 connectors and remove the 2 clamps.

  1. Remove the instrument panel wire assembly from the front passenger airbag assembly.

    NOTICE:
    When handling the airbag connector, take care not to damage the airbag wire harness.
