Front Passenger Airbag Assembly Installation

Restraints. Lexus Is250, Is220D. Gse20 Ale20
Supplemental Restraint System. Lexus Is250, Is220D. Gse20 Ale20

  1. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY

  2. INSTALL SIDE DEFROSTER NOZZLE NO.2 DUCT

  3. INSTALL HEATER TO REGISTER NO.3 DUCT

  4. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

  5. CONNECT INSTRUMENT PANEL WIRE ASSEMBLY

  6. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY

  7. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY

  8. INSTALL NO.2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

  9. INSTALL INSTRUMENT SIDE PANEL RH

  10. INSTALL FRONT DOOR OPENING TRIM COVER RH

  11. INSTALL FRONT DOOR SCUFF PLATE (w/ Illumination)

  12. INSTALL FRONT DOOR SCUFF PLATE (w/o Illumination)

  13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

  14. PERFORM INITIALIZATION

  15. INSPECT SRS WARNING LIGHT

Front Passenger Airbag Assembly -- Installation



1. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20.Supplemental Restraint System.Airbag System.Front Passenger Airbag Assembly Installation

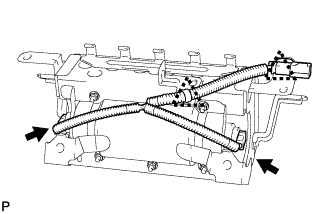

  1. Connect the 2 connectors and the 2 clamps to the front passenger airbag assembly.

    NOTICE:
    When handling the airbag connector, take care not to damage the airbag wire harness.


    Lexus Is250, Is220D. Gse20 Ale20.Supplemental Restraint System.Airbag System.Front Passenger Airbag Assembly Installation

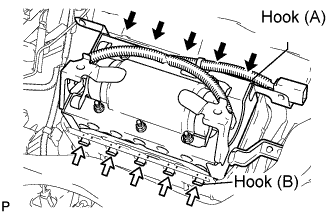

  1. Engage the 5 hooks (A).

  1. Engage the 5 hooks (B) and install the front passenger airbag assembly on the instrument panel.



    Lexus Is250, Is220D. Gse20 Ale20

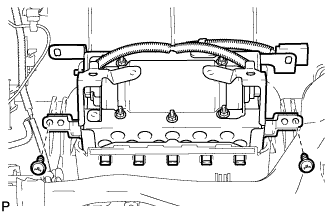

  1. Install the 2 screws.



2. INSTALL SIDE DEFROSTER NOZZLE NO.2 DUCT


    Lexus Is250, Is220D. Gse20 Ale20

  1. Install the side No. 2 defroster nozzle duct with the screw <F>.



3. INSTALL HEATER TO REGISTER NO.3 DUCT


    Lexus Is250, Is220D. Gse20 Ale20

  1. Install the No. 3 heater to register duct with the 3 screws <F>.



4. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
HINT:
Refer to the procedures from "INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY" (Click here).


5. CONNECT INSTRUMENT PANEL WIRE ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20.Supplemental Restraint System.Airbag System.Front Passenger Airbag Assembly Installation

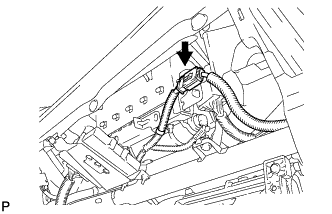

  1. Connect the connector.



6. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

  1. Connect the connectors.

  1. Engage the 2 claws.

  1. Install the glove compartment door assembly with the 5 screws.



7. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

  1. Connect the connector.

    NOTICE:
    When handling the airbag connector, take care not to damage the airbag wire harness.

  1. Install the front passenger side knee airbag assembly with the 3 bolts.

    Torque:
    10 N*m{102 kgf*cm, 7 ft.*lbf}


8. INSTALL NO.2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

  1. Engage the 4 clips and install the No. 2 instrument panel under cover sub-assembly.



9. INSTALL INSTRUMENT SIDE PANEL RH


    Lexus Is250, Is220D. Gse20 Ale20

  1. Engage the 5 claws and 3 clips, and then install the side instrument panel RH.



10. INSTALL FRONT DOOR OPENING TRIM COVER RH


    Lexus Is250, Is220D. Gse20 Ale20

  1. Engage the 6 claws and install the front door opening trim cover RH.



11. INSTALL FRONT DOOR SCUFF PLATE (w/ Illumination)


12. INSTALL FRONT DOOR SCUFF PLATE (w/o Illumination)


13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL


14. PERFORM INITIALIZATION

  1. Perform initialization (Click here).

    HINT:
    Some systems need initialization after reconnecting the cable to the negative battery terminal.


15. INSPECT SRS WARNING LIGHT

  1. Inspect the SRS warning light (Click here).
