Front Airbag Sensor Removal
PRECAUTION
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE COOL AIR INTAKE DUCT SEAL
REMOVE ENGINE ROOM SIDE COVER LH
REPLACE FRONT UPPER FENDER PROTECTOR LH
REMOVE FRONT BUMPER COVER
REMOVE HEADLIGHT ASSEMBLY
REMOVE FRONT AIRBAG SENSOR
Front Airbag Sensor -- Removal |
- HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- CAUTION:
- Be sure to read "PRECAUTION" thoroughly before servicing (Click here).
| 2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL |
- CAUTION:
- Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.
| 3. REMOVE COOL AIR INTAKE DUCT SEAL |
Using a clip remover, remove the 11 clips and cool air intake duct seal.
| 4. REMOVE ENGINE ROOM SIDE COVER LH |
Remove the 5 clips and side cover.
| 5. REPLACE FRONT UPPER FENDER PROTECTOR LH |
Using a clip remover, separate the clip on the rubber portion of the cowl top ventilator louver sub-assembly from the front upper fender protector LH.
Disengage the 3 clips and the claw to remove the front fender protector upper LH.
| 6. REMOVE FRONT BUMPER COVER |

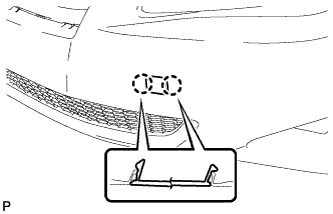

Disengage the 2 claws and remove the lower front bumper cover.
| 7. REMOVE HEADLIGHT ASSEMBLY |
Disconnect the connector as shown in the illustration.
Remove the 3 bolts.
Disengage the headlight bracket pin and remove the headlight assembly.
| 8. REMOVE FRONT AIRBAG SENSOR |
Remove the 2 bolts and front airbag sensor from the body.
Disconnect the connector from the front airbag sensor LH.
