Brake System System Diagram

Brake. Lexus Is250, Is220D. Gse20 Ale20
Brake. Lexus Is250, Is220D. Gse20 Ale20

Brake System -- System Diagram


HINT:

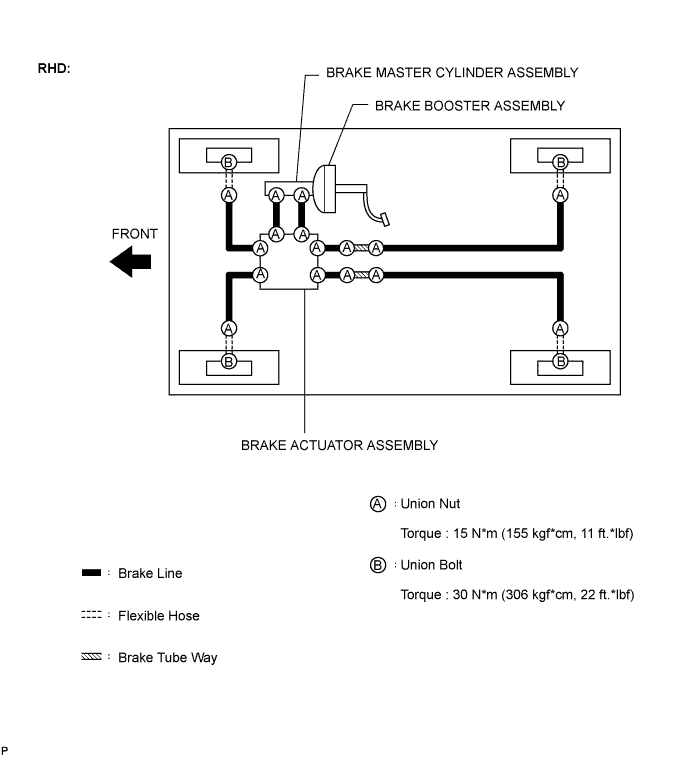

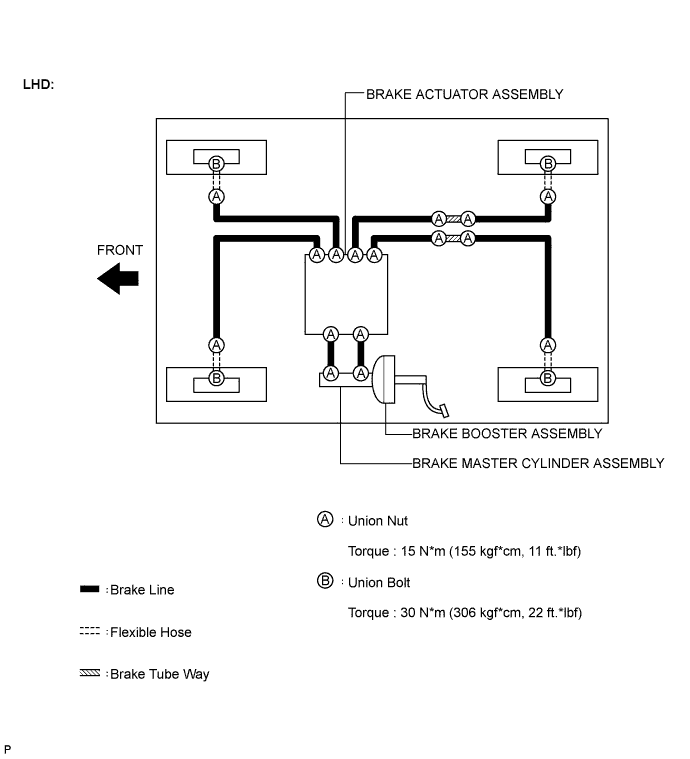

See the layout drawing to confirm the locations and tightening torque of flexible hoses and brake lines.
