LIGHTING SYSTEM - Headlight Signal Circuit |
DESCRIPTION
The main body ECU RH receives a HEAD position signal from the combination switch as a backup link. It also receives a signal from the combination switch via the multiplex communication system.If this link is grounded, the headlights will illuminate.

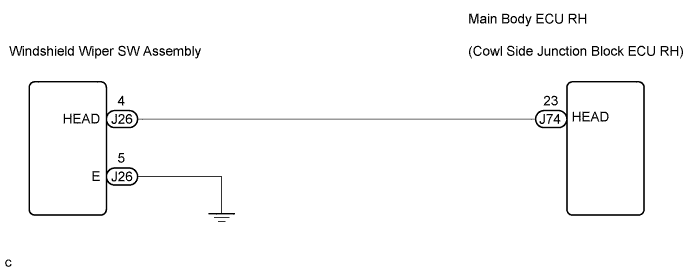

WIRING DIAGRAM
INSPECTION PROCEDURE

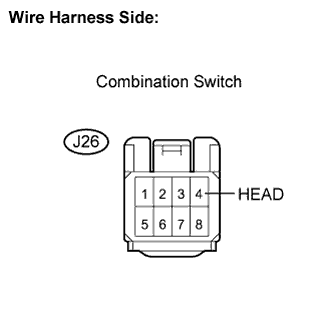

1.CHECK HARNESS AND CONNECTOR (MAIN BODY ECU RH - COMBINATION SWITCH ASSEMBLY) |
Disconnect the J26 combination switch connector.
Measure the voltage according to the value(s) in the table below.
- Standard voltage:
Tester Connection
| Condition
| Specified Condition
|
J26-4 (HEAD) - Body ground
| Always
| 10 to 14 V
|
2.CHECK HARNESS AND CONNECTOR (MAIN BODY ECU RH - COMBINATION SWITCH) |
Connect the J26 combination switch connector.
Measure the voltage according to the value(s) in the table below.
- Standard voltage:
Tester Connection
| Condition
| Specified Condition
|
J26-4 (HEAD) - Body ground
| Light control switch is off
| 10 to 14 V
|
J26-4 (HEAD) - Body ground
| Light control switch is in HEAD position
| Below 1 V
|
OK |
|
|
|
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE |
|

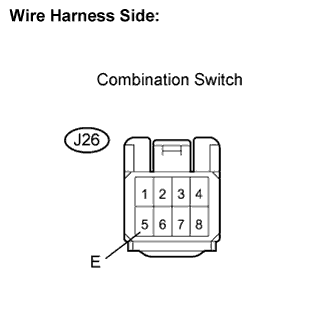

3.CHECK HARNESS AND CONNECTOR (COMBINATION SWITCH ASSEMBLY - BODY GROUND) |
Disconnect the J26 combination switch connector.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection
| Condition
| Specified Condition
|
J26-5 (E) - Body ground
| Always
| Below 1 Ω
|
| REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
OK |
|
|
|
REPLACE WINDSHIELD WIPER SWITCH ASSEMBLY |
|
4.CHECK HARNESS AND CONNECTOR (MAIN BODY ECU RH - COMBINATION SWITCH) |
Disconnect the J74 ECU connector.
Disconnect the J26 combination switch connector.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection
| Condition
| Specified Condition
|
J74-23 (HEAD) - J26-4 (HEAD)
| Always
| Below 1 Ω
|
J74-23 (HEAD) - Body ground
| Always
| 10 kΩ or higher
|
| REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
OK |
|
|
|
REPLACE MAIN BODY ECU RH (COWL SIDE J/B RH) |
|
