LIGHTING SYSTEM - Headlight (HI-BEAM) Circuit |
DESCRIPTION
The front controller receives headlight HI switch information from the combination switch, and turns on the headlights.Bi-function:This function is activated by a HI beam turn ON signal from the front controller and activates the headlight solenoid built into the headlight unit to slide the shade down.When the LO beam headlight is switched on, the upper illumination area of the discharge bulb is blocked by the shade and only the lower illumination area is used. When the HI beam is turned on, the headlight solenoid slides the shade down to allow use of the upper illumination area, thus increasing the illumination area and improving visibility when the HI beam is on.

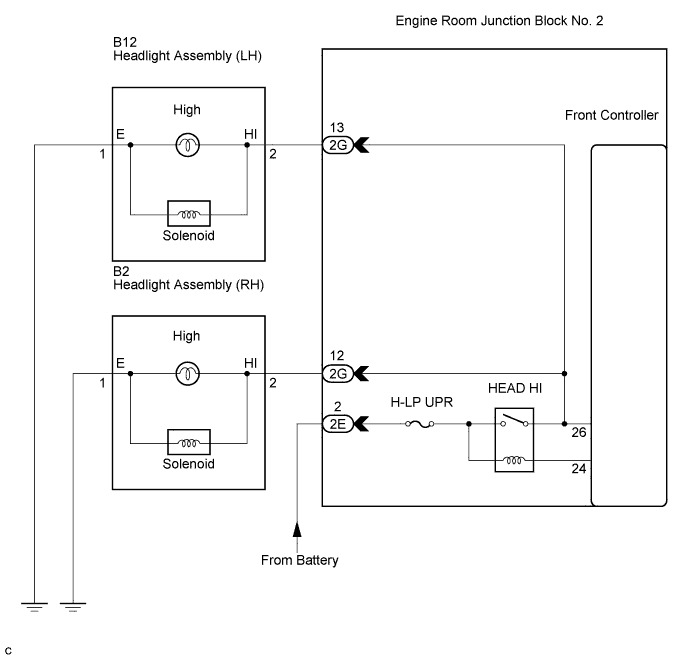

WIRING DIAGRAM
INSPECTION PROCEDURE
1.PERFORM ACTIVE TEST BY INTELLIGENT TESTER |
Connect the intelligent tester to the DLC3.
Turn the engine switch on (IG).
Turn the intelligent tester main switch on.
Select the item below in the ACTIVE TEST and then check the headlight operation.
ACTIVE TEST: Body No. 5 (Front Controller)Item
| Test Details
| Diagnostic Note
|
Light Head (High)
| Headlight (High) ON / OFF
| -
|
- OK:
- Headlight assembly illuminates.
OK |
|
|
|
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE |
|
2.INSPECT FUSE (H-LP UPR) |
Remove the H-LP UPR fuse from the engine room No. 2 relay block.
Measure the resistance of the fuse.
- Standard resistance:
- Below 1 Ω
3.CHECK HARNESS AND CONNECTOR (ENGINE ROOM NO. 2 RELAY BLOCK - BATTERY) |
Disconnect the 2E relay block connector.
Measure the voltage according to the value(s) in the table below.
- Standard voltage:
Tester Connection
| Condition
| Specified Condition
|
2E-2 - Body ground
| Always
| 10 to 14 V
|
| REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
4.CHECK HARNESS AND CONNECTOR (ENGINE ROOM NO. 2 RELAY BLOCK - BODY GROUND) |

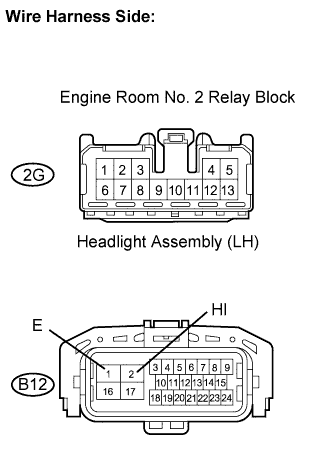

Check the wire harness between the headlight (LH) and engine room No. 2 relay block, and the headlight (LH) and body ground.
Disconnect the 2G relay block connector.
Disconnect the B12 headlight (LH) connector.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection
| Condition
| Specified Condition
|
2G-13 - B12-2 (HI)
| Always
| Below 1 Ω
|
2G-13 or B12-2 (HI) - Body ground
| Always
| 10 kΩ or higher
|
B12-1 (E) - Body ground
| Always
| Below 1 Ω
|

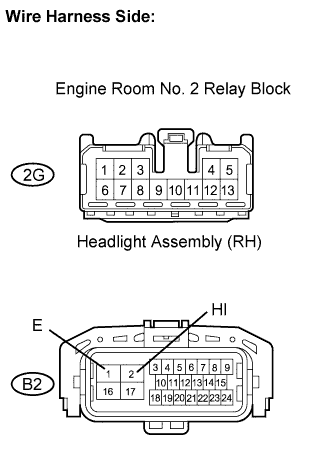

Check the wire harness between the headlight (RH) and engine room No. 2 relay block, and the headlight (RH) and body ground.
Disconnect the 2G relay block connector.
Disconnect the B2 headlight (RH) connector.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection
| Condition
| Specified Condition
|
2G-12 - B2-2 (HI)
| Always
| Below 1 Ω
|
2G-12 or B2-2 (HI) - Body ground
| Always
| 10 kΩ or higher
|
B2-1 (E) - Body ground
| Always
| Below 1 Ω
|
| REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
OK |
|
|
|
REPLACE ENGINE ROOM NO. 2 R/B (FRONT CONTROLLER) |
|
