Steering Gear Inspection

Steering. Lexus Is250, Is220D. Gse20 Ale20
Power Steering. Lexus Is250, Is220D. Gse20 Ale20

  1. INSPECT TOTAL PRELOAD

Steering Gear -- Inspection



1. INSPECT TOTAL PRELOAD

  1. Temporarily install the left and right steering rack ends to prevent steering rack overstroke.



    Lexus Is250, Is220D. Gse20 Ale20.Power Steering.Power Steering System.Steering Gear Inspection

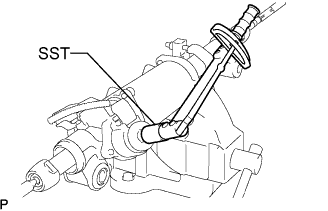

  1. Using SST and a torque wrench, inspect preload.

    SST
    09616-00011
    Preload (turning):
    1.0 to 2.0 N*m (10.2 to 20.4 kgf*cm, 8.9 to 17.7 in.*lbf)
    HINT:
    If turning torque is not as specified, replace the power steering gear assembly.
