Radiator Disassembly

Engine. Lexus Is250, Is220D. Gse20 Ale20
2Ad-Fhv Cooling. Lexus Is250, Is220D. Gse20 Ale20

  1. REMOVE UPPER RADIATOR TANK

  2. REMOVE LOWER RADIATOR TANK

  3. INSPECT LOCK PLATE FOR DAMAGE

Radiator -- Disassembly



1. REMOVE UPPER RADIATOR TANK


    Lexus Is250, Is220D. Gse20 Ale20.2Ad-Fhv Cooling.Cooling System.Radiator Disassembly

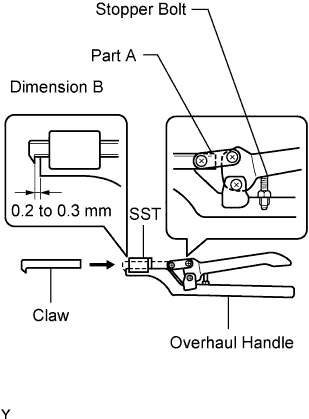

  1. Install the claw to the overhaul handle, inserting it in the hole in part A as shown in the illustration.

    SST
    09230-01010(09231-01010,09231-01030)

  1. While gripping the handle, adjust the stopper bolt so that dimension B is as shown in the illustration.

    NOTICE:
    If this adjustment is not performed, the claw will be damaged.
    Dimension B:
    0.2 to 0.3 mm (0.008 to 0.012 in.)


    Lexus Is250, Is220D. Gse20 Ale20.2Ad-Fhv Cooling.Cooling System.Radiator Disassembly

  1. Using SST to release the caulking, grip the handle until it is stopped by the stopper bolt.

    SST
    09230-01010(09231-01010,09231-01030)


    Lexus Is250, Is220D. Gse20 Ale20

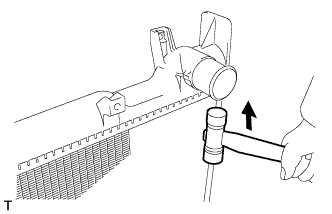

  1. Lightly tap the bracket of the radiator (or radiator hose inlet or outlet) with a plastic hammer and remove the tank.

  1. Remove the O-ring.



2. REMOVE LOWER RADIATOR TANK
HINT:
Removal procedure of the lower radiator tank is the same as that of the upper radiator tank.


3. INSPECT LOCK PLATE FOR DAMAGE


    Lexus Is250, Is220D. Gse20 Ale20.2Ad-Fhv Cooling.Cooling System.Radiator Disassembly

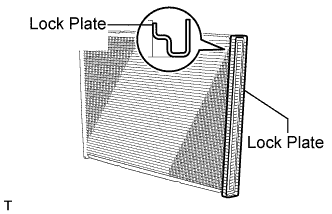

  1. Inspect the lock plate for damage.

    HINT:
    1. If the sides of the lock plate groove are deformed, reassembly of the tank will be impossible. Correct any deformations with pliers.
    1. Water leakage will result if the bottom of the lock plate groove is damaged or dented. Repair or replace if necessary.
    NOTICE:
    The radiator assembly can be recaulked only twice. After the 2nd time, the radiator core must be replaced.
