Engine Immobiliser System (For 2Ad-Fhv) System Diagram

Securities. Lexus Is250, Is220D. Gse20 Ale20
Engine Immobiliser. Lexus Is250, Is220D. Gse20 Ale20

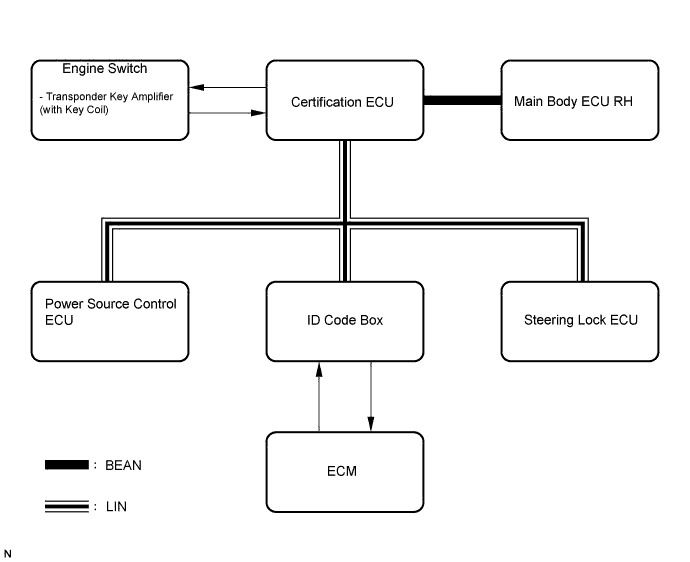

Engine Immobiliser System (For 2Ad-Fhv) -- System Diagram



Lexus Is250, Is220D. Gse20 Ale20.Engine Immobiliser.Engine Immobiliser System (For 2Ad-Fhv).Engine Immobiliser System (For 2Ad-Fhv) System Diagram


Communication table:
Transmitting ECU (Transmitter)
Receiving ECU (Receiver)
Signals
Communication method
Certification ECU
Main body ECU RH
  1. Security indicator light flash signal
  2. Security indicator light illumination signal
  3. Immobiliser system set/unset signal
BEAN
Power source control ECU
Certification ECU
Key code recognition signal
BEAN
ID code box
Certification ECU
DTC (B2791) signal
LIN
ID code box
Steering lock ECU
  1. Steering lock release signal
  2. Matching request random number signal
LIN
ID code box
Certification ECU
Matching request random number signal
LIN
