Navigation System Voice Is Not Recognized

INSPECTION PROCEDURE

CHECK NAVIGATION SETTING

CHECK MAP DISC

CHECK MAP DISC

CHECK MICROPHONE (NAVIGATION CHECK MODE)

CHECK MICROPHONE (DISPLAY CHECK MODE)

INSPECTION PROCEDURE

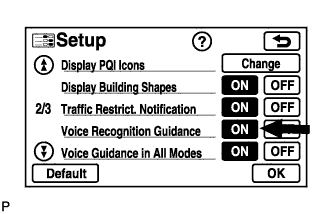

1. Enter the "Menu" screen by pressing the "MENU" switch.


2. Select "Set up".


3. Check that "Voice Recognition Guidance" is not OFF.


   OK:

   Voice Recognition Guidance is not OFF.


1. Check that the map disc is not deformed or cracked.


   OK:

   No deformations or cracks on map disc.


1. Check for dirt on the map disc surface.


   OK:

   No dirt is on the map disc surface.


   NOTICE:

   Do not use a conventional record cleaner or anti-static preservative.

   HINT:

   If the disc is dirty, clean the disc by wiping the disc surface radially with a soft cloth.

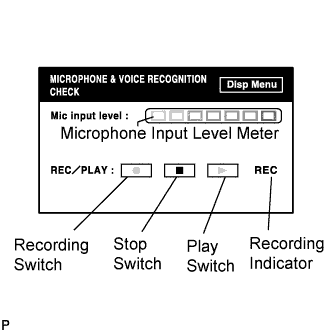

1. Enter the "MICROPHONE & VOICE RECOGNITION CHECK" mode (Click here).


2. When voice is input into the microphone, check that the microphone input level meter changes according to the input voice.


3. Push the recording switch and perform voice recording.


   HINT:

   Voice can be recorded up to 5 seconds.

4. Check that the recording indicator remains on while recording and that the recorded voice is played normally without noise or distortion.


   OK:

   All check results are normal.


1. Enter the "MICROPHONE & VOICE RECOGNITION CHECK" mode (Click here).


2. When voice is input into the microphone, check that the microphone input level meter changes according to the input voice.


3. Push the recording switch and perform voice recording.


   HINT:

   Voice can be recorded up to 5 seconds.

4. Check that the recording indicator remains on while recording and that the recorded voice is played normally without noise or distortion.


   OK:

   All check results are normal.
