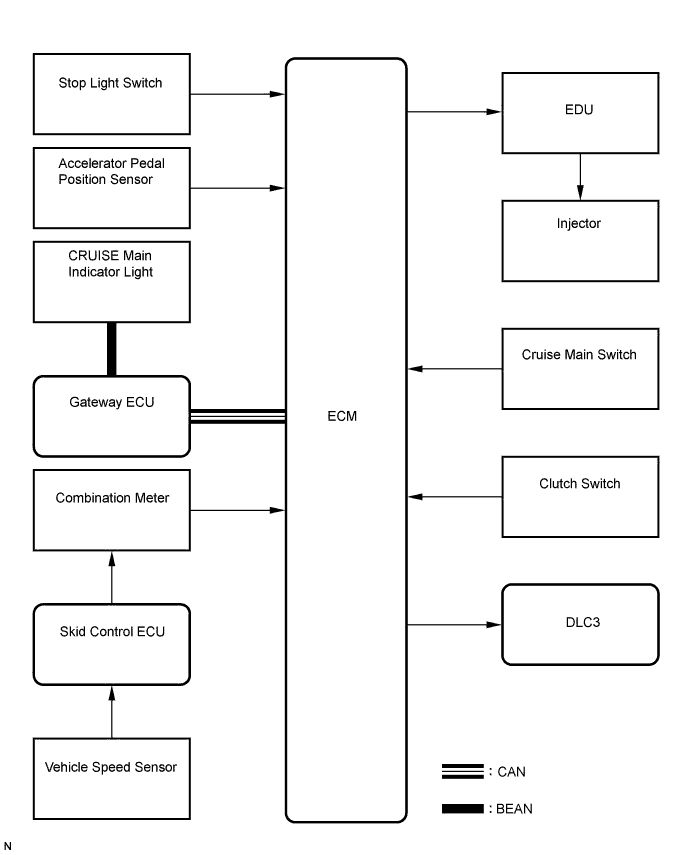

Cruise Control System (For 2Ad-Fhv) -- System Diagram



Lexus Is250, Is220D. Gse20 Ale20.Cruise Control.Cruise Control System.Cruise Control System (For 2Ad-Fhv) System Diagram


Communication Table:
Sender
Receiver
Signal
Line
ECM
Gateway ECU
CRUISE main indicator operation signal
CAN
Gateway ECU
Combination Meter ECU
CRUISE main indicator operation signal
BEAN
