Cruise Control System System Diagram

Cruise Control System. Lexus Is250, Is220D. Gse20 Ale20
Cruise Control. Lexus Is250, Is220D. Gse20 Ale20

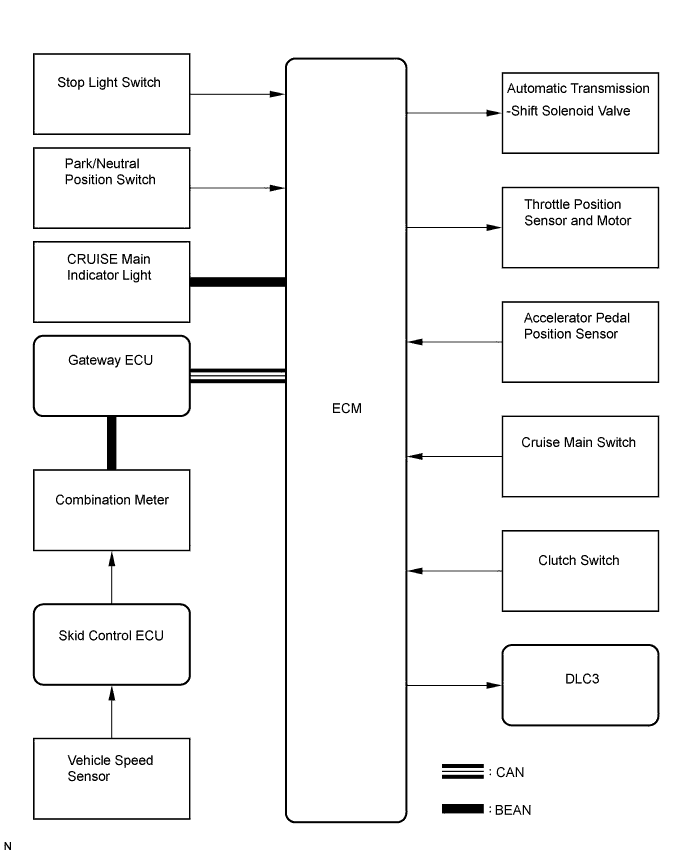

Cruise Control System -- System Diagram



Lexus Is250, Is220D. Gse20 Ale20.Cruise Control.Cruise Control System.Cruise Control System System Diagram


Communication Table:
Sender
Receiver
Signal
Line
ECM
Combination Meter ECU
CRUISE main indicator operation signal
BEAN
(Instrument Panel Bus)
