CRUISE CONTROL SYSTEM (for 2AD-FHV) - Cruise Control Switch Circuit


DESCRIPTION

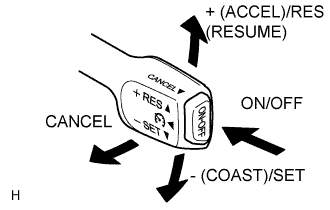

The cruise control main switch operates 7 functions: SET, - (COAST), TAP-DOWN, RES (RESUME), + (ACCEL), TAP-UP, and CANCEL. The SET, TAP-DOWN, and - (COAST) functions, and the RES (RESUME), TAP-UP, and + (ACCEL) functions are operated with the same switch. The cruise control main switch is an automatic return type switch which turns on only while operating it in the direction of each arrow and turns off after releasing it. The internal contact point of the cruise control main switch is turned on with the switch operation. Then the ECM reads the voltage value that has been changed by the switch operation to control SET, - (COAST), RES (RESUME), + (ACCEL), and CANCEL.

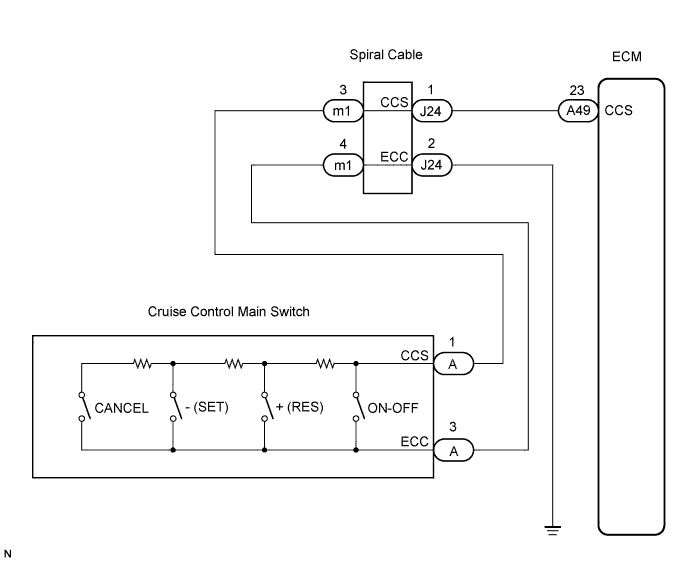

WIRING DIAGRAM


Lexus Is250, Is220D. Gse20 Ale20.Cruise Control.Cruise Control System.Cruise Control System (For 2Ad-Fhv) Cruise Control Switch Circuit


INSPECTION PROCEDURE

1.READ VALUE ON INTELLIGENT TESTER
Lexus Is250, Is220D. Gse20 Ale20.Cruise Control.Cruise Control System.Cruise Control System (For 2Ad-Fhv) Cruise Control Switch Circuit

  1. Connect the intelligent tester to the DLC3.

  1. Turn the engine switch on (IG) and turn the intelligent tester main switch on.

  1. Check the DATA LIST for proper functioning of the cruise control main switch.

    ECM (Cruise control):
    Item
    		Measurement Item/Display (Range)
    		Normal Condition
    		Diagnostic Note
    MAIN SW (MAIN)
    		Main switch signal (Main CPU)/ON or OFF
    		ON: Main switch on (Pushed on)
    OFF: Main switch off (Pushed off)
    		-
    CANCEL SW
    		CANCEL switch signal/ON or OFF
    		ON: CANCEL switch on
    OFF: CANCEL switch off
    		-
    SET/COAST SW
    		SET/COAST switch signal/ON or OFF
    		ON: - (COAST)/SET switch on
    OFF: - (COAST)/SET switch off
    		-
    RES/ACC SW
    		RES/ACC switch signal/ON or OFF
    		ON: + (ACCEL)/RES (RESUME) switch on
    OFF: + (ACCEL)/RES (RESUME) switch off
    		-
    OK:
    When the cruise control main switch is operated, the display changes as shown above.
    Result:
    Result
    		Proceed to
    OK
    		A
    NG (All items are defective)
    		B
    NG (1 to 3 items are defective)
    		C


A
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

C
REPLACE CRUISE CONTROL MAIN SWITCH
B

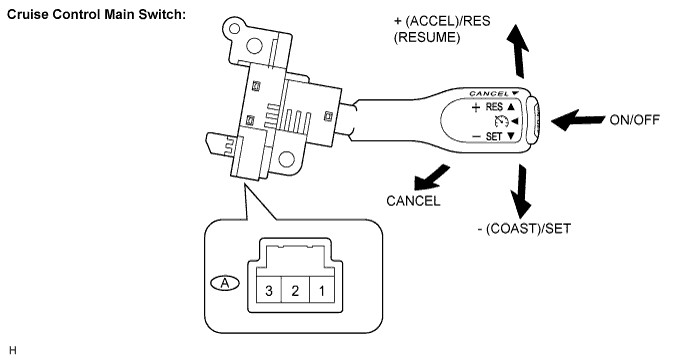

2.INSPECT CRUISE CONTROL MAIN SWITCH

  1. Remove the cruise control main switch (Click here).



  1. Measure the resistance according to the value(s) in the table below.


    Lexus Is250, Is220D. Gse20 Ale20.Cruise Control.Cruise Control System.Cruise Control System (For 2Ad-Fhv) Cruise Control Switch Circuit


Standard resistance:

Tester Connection
Switch Condition
Specified Condition
A-1 (CCS) - A-3 (ECC)
Neutral
10 kΩ or higher
A-1 (CCS) - A-3 (ECC)
+ (ACCEL)/RES (RESUME)
216 to 264 Ω
A-1 (CCS) - A-3 (ECC)
- (COAST)/SET
567 to 693 Ω
A-1 (CCS) - A-3 (ECC)
CANCEL
1,386 to 1,694 Ω
A-1 (CCS) - A-3 (ECC)
Main Switch off
10 kΩ or higher
A-1 (CCS) - A-3 (ECC)
Main Switch on
Below 1 Ω


NG
REPLACE CRUISE CONTROL MAIN SWITCH
OK

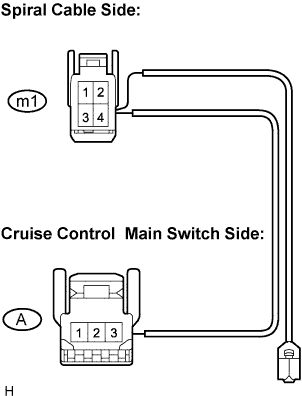

3.CHECK HARNESS AND CONNECTOR (CRUISE CONTROL MAIN SWITCH - SPIRAL CABLE)


    Lexus Is250, Is220D. Gse20 Ale20.Cruise Control.Cruise Control System.Cruise Control System (For 2Ad-Fhv) Cruise Control Switch Circuit

  1. Disconnect the m1 connector from the spiral cable.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester connection
    		Specified condition
    A-1 - m1-3
    		Below 1 Ω
    A-3 - m1-4
    		Below 1 Ω


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

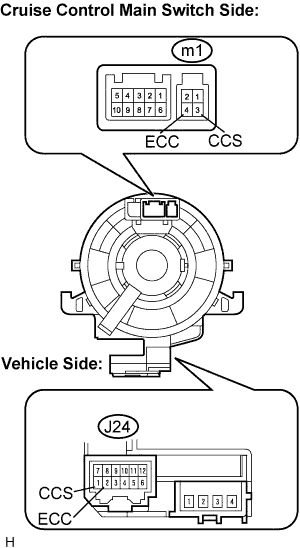

4.CHECK SPIRAL CABLE
Lexus Is250, Is220D. Gse20 Ale20.Cruise Control.Cruise Control System.Cruise Control System (For 2Ad-Fhv) Cruise Control Switch Circuit
NOTICE:
The spiral cable is an important part of the SRS airbag system. Incorrect removal or installation of the spiral cable may prevent the airbag from deploying. Be sure to read the page shown in the brackets.
HINT:
  1. Removal (Click here)
  2. Installation (Click here)

  1. Remove the spiral cable.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Spiral Cable Position
    		Specified Condition
    m1-3 - J24-1 (CCS)
    		Center
    		Below 1 Ω
    2.5 rotations to the left
    2.5 rotations to the right
    m1-4 - J24-2 (ECC)
    		Center
    		Below 1 Ω
    2.5 rotations to the left
    2.5 rotations to the right
    HINT:
    The spiral cable makes a maximum of approximately 5 rotations.


NG
REPLACE SPIRAL CABLE
OK

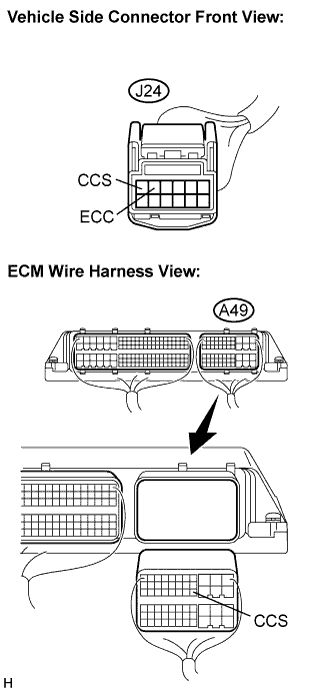

5.CHECK WIRE HARNESS (SPIRAL CABLE - ECM AND BODY GROUND)


    Lexus Is250, Is220D. Gse20 Ale20.Cruise Control.Cruise Control System.Cruise Control System (For 2Ad-Fhv) Cruise Control Switch Circuit

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    J24-1 - A49-23 (CCS)
    		Always
    		Below 1 Ω
    A49-23 (CCS) - Body ground
    		Always
    		10 kΩ or higher
    J24-2 (ECC) - Body ground
    		Always
    		Below 1 Ω


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

REPLACE ECM
