Lighting System Terminals Of Ecu

Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Lighting. Lexus Is250, Is220D. Gse20 Ale20
  1. CHECK ENGINE ROOM NO. 2 R/B (FRONT CONTROLLER)

  1. CHECK MAIN BODY ECU RH (COWL SIDE J/B RH)

  1. CHECK MAIN BODY ECU LH

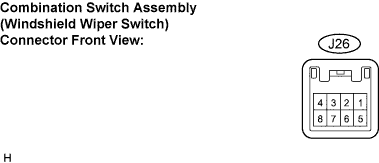

  1. CHECK COMBINATION SWITCH ASSEMBLY (Windshield Wiper Switch)

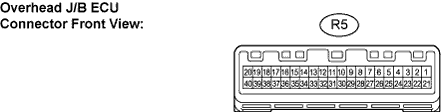

  1. CHECK OVERHEAD J/B

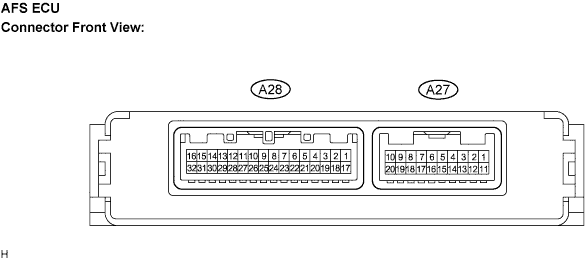

  1. CHECK AFS ECU

Lighting System -- Terminals Of Ecu

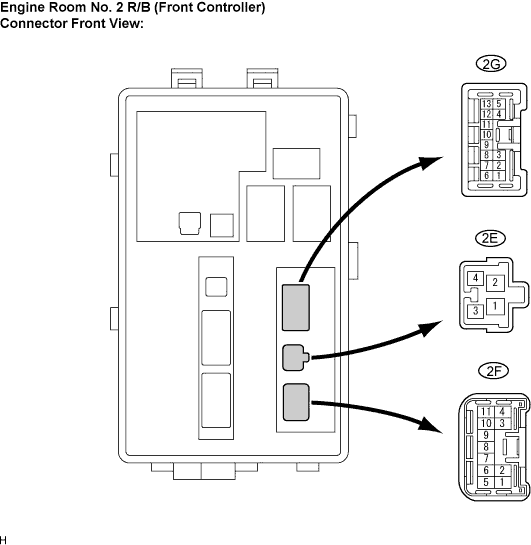

CHECK ENGINE ROOM NO. 2 R/B (FRONT CONTROLLER)

Lexus Is250, Is220D. Gse20 Ale20.Lighting.Lighting System.Lighting System  Terminals Of Ecu


Symbols (Terminal No.)
Wiring Color
Terminal Description
Condition
Specified Condition
ALTB (2E-1) - Body ground
W - Body ground
Power source circuit
Always
10 to 14 V
BATB (2E-2) - Body ground
W-L - Body ground
Power source circuit
Always
10 to 14 V
FMIG (2E-3) - Body ground
B-Y - Body ground
Engine switch signal circuit
Engine switch on (IG)
10 to 14 V
FMIG (2E-3) - Body ground
B-Y - Body ground
Engine switch signal circuit
Engine switch off
Below 1 V
FMB3 (2E-4) - Body ground
G-R - Body ground
Power source circuit
Always
10 to 14 V
E (2F-1) - Body ground
W-B - Body ground
Ground
Always
Below 1 V

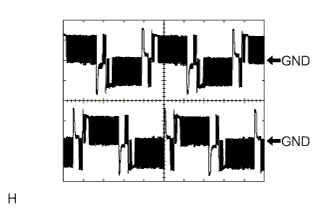

MPX1 (2F-5) - Body ground
L - Body ground
Multiplex communication signal circuit
Engine switch on (IG)
Signal waveform
MPX2 (2F-6) - Body ground
GR - Body ground
Multiplex communication signal circuit
Engine switch on (IG)
Signal waveform
FOGR (2G-6) - Body ground
LG - Body ground
Fog light circuit
(To front fog light RH)
Front fog light ON
10 to 14 V
FOGR (2G-6) - Body ground
LG - Body ground
Fog light circuit
(To front fog light RH)
Front fog light OFF
Below 1 V
FOGL (2G-7) - Body ground
G-R - Body ground
Fog light circuit
(To front fog light LH)
Front fog light ON
10 to 14 V
FOGL (2G-7) - Body ground
G-R - Body ground
Fog light circuit
(To front fog light LH)
Front fog light OFF
Below 1 V
CRAR (2G-8) - Body ground
G - Body ground
Taillight circuit
(To parking light RH)
Light control switch in TAIL
10 to 14 V
CRAR (2G-8) - Body ground
G - Body ground
Taillight circuit
(To parking light RH)
Light control switch OFF
Below 1 V
CRAL (2G-9) - Body ground
G - Body ground
Taillight circuit
(To parking light LH)
Light control switch in TAIL
10 to 14 V
CRAL (2G-9) - Body ground
G - Body ground
Taillight circuit
(To parking light LH)
Light control switch OFF
Below 1 V
HLHR (2G-12) - Body ground
R-W - Body ground
Hi-beam circuit
(To headlight RH)
Headlight dimmer switch in HI
10 to 14 V
HLHR (2G-12) - Body ground
R-W - Body ground
Hi-beam circuit
(To headlight RH)
Headlight dimmer switch in HEAD
Below 1 V
HLHL (2G-13) - Body ground
R-Y - Body ground
Hi-beam circuit
(To headlight LH)
Headlight dimmer switch in HI
10 to 14 V
HLHL (2G-13) - Body ground
R-Y - Body ground
Hi-beam circuit
(To headlight LH)
Headlight dimmer switch in HEAD
Below 1 V
(2G-4) - Body ground
R-L - Body ground
Hi-beam circuit
Headlight dimmer switch in HI
10 to 14 V
(2G-4) - Body ground
R-L - Body ground
Hi-beam circuit
Headlight dimmer switch in HEAD
Below 1 V
(2G-10) - Body ground
G-Y - Body ground
Taillight circuit
(To marker light RH)
Light control switch in TAIL
10 to 14 V
(2G-10) - Body ground
G-Y - Body ground
Taillight circuit
(To marker light RH)
Light control switch OFF
Below 1 V
(2G-11) - Body ground
BR - Body ground
Taillight circuit
(To marker light LH)
Light control switch in TAIL
10 to 14 V
(2G-11) - Body ground
BR - Body ground
Taillight circuit
(To marker light LH)
Light control switch OFF
Below 1 V

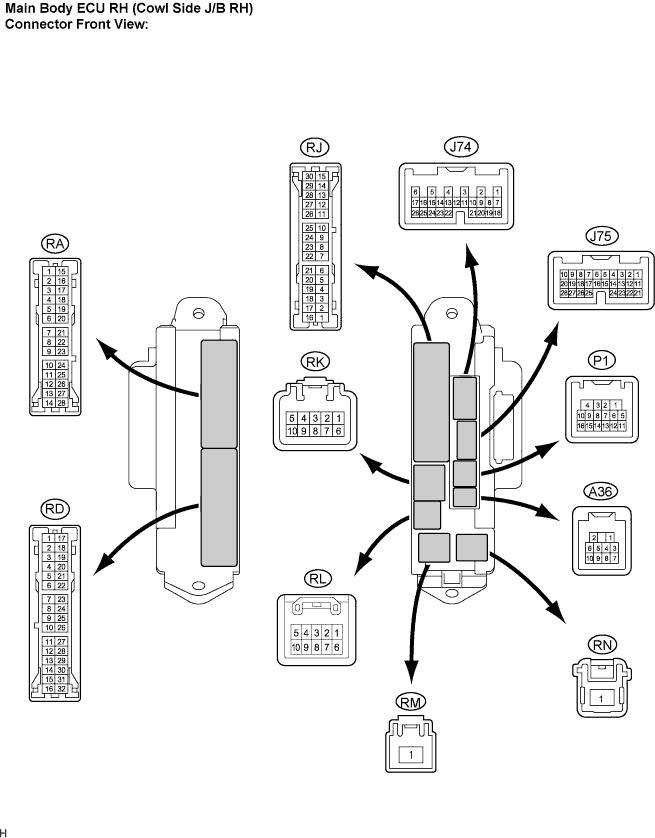

CHECK MAIN BODY ECU RH (COWL SIDE J/B RH)

Lexus Is250, Is220D. Gse20 Ale20.Lighting.Lighting System.Lighting System  Terminals Of Ecu


Symbols (Terminal No.)
Wiring Color
Terminal Description
Condition
Specified Condition
GND2 (RD-7) - Body ground
W-B - Body ground
Ground
Always
Below 1 V
LCTY (RA-11) - Body ground
BR - Body ground
Illumination signal
(From door courtesy switch rear LH)
Rear LH door is closed
10 to 14 V
LCTY (RA-11) - Body ground
BR - Body ground
Illumination signal
(From door courtesy switch rear LH)
Rear LH door is open
Below 1 V

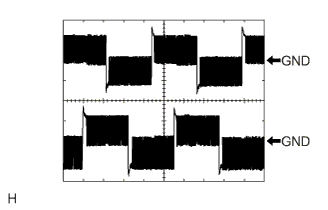

MPX1 (RJ-21) - Body ground
GR - Body ground
Multiplex communication signal circuit
Engine switch on (IG)
Signal waveform
BECU (RK-5) - Body ground
G-R - Body ground
Multiplex communication power source circuit
Always
10 to 14 V
HRLY (RL-7) - Body ground
R-W - Body ground
HEAD signal
(To HEAD relay)
Light control switch OFF or in TAIL
10 to 14 V
HRLY (RL-7) - Body ground
R-W - Body ground
HEAD signal
(To HEAD relay)
Light control switch in HEAD
Below 1 V
DCTY (P1-14) - Body ground
W - Body ground
Illumination signal
(From driver side courtesy switch)
Driver's side door is closed
10 to 14 V
DCTY (P1-14) - Body ground
W - Body ground
Illumination signal
(From driver side courtesy switch)
Driver's side door is open
Below 1 V
RCTY (P1-16) - Body ground
O - Body ground
Illumination signal
(From door courtesy switch rear RH)
Rear door RH is closed
10 to 14 V
RCTY (P1-16) - Body ground
O - Body ground
Illumination signal
(From door courtesy switch rear RH)
Rear door RH is open
Below 1 V
FSPT (J75-15) - Body ground
R - Body ground
Illumination signal
(To footwell lights)
Footwell lights come on
Below 1 V
FSPT (J75-15) - Body ground
R - Body ground
Illumination signal
(To footwell lights)
Footwell lights go off
10 to 14 V
MPX2 (J75-21) - Body ground
GR - Body ground
Multiplex communication signal circuit
Engine switch on (IG)
Signal waveform
CLTE (J74-4) - Body ground
W - Body ground
Automatic light control sensor ground circuit
Always
Below 1 V
CLTS (J74-5) - Body ground
R - Body ground
Automatic light control sensor ground circuit
Engine switch off
Below 1 V

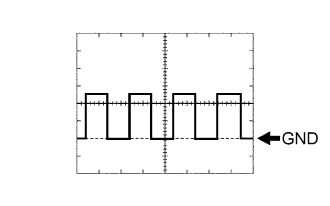

CLTS (J74-5) - Body ground
R - Body ground
Automatic light control sensor ground circuit
Engine switch on (IG), light control switch in AUTO, headlights come ON
Signal waveform
CLTB (J74-6) - Body ground
GR - Body ground
Automatic light control sensor power source circuit
Engine switch off
Below 1 V
CLTB (J74-6) - Body ground
GR - Body ground
Automatic light control sensor power source circuit
Engine switch on (IG)
10 to 14 V
HEAD (J74-23) - Body ground
L - Body ground
HEAD signal
(From light control switch)
Light control switch OFF or in TAIL
10 to 14 V
HEAD (J74-23) - Body ground
L - Body ground
HEAD signal
(From light control switch)
Light control switch in HEAD
Below 1 V
ALTB (RA-15) - Body ground
SB - Body ground
Power source circuit
Always
10 to 14 V
UL2 (J75-4) - Body ground
O - Body ground
Interior light switch (ON / OFF) signal
Interior light switch ON
Below 1 V
UL2 (J75-4) - Body ground
O - Body ground
Interior light switch (ON / OFF) signal
Interior light switch OFF
10 to 14 V
TRLY (RD-1) - Body ground
Y - Body ground
HEAD signal (to HEAD relay)
Light control switch OFF
10 to 14 V
TRLY (RD-1) - Body ground
Y - Body ground
HEAD signal (to HEAD relay)
Light control switch in TAIL
Below 1 V
PCYL (J75-24) - Body ground
G - Body ground
Illumination signal
(From door courtesy light front LH)
Passenger's side door is open
Below 1 V
PCYL (J75-24) - Body ground
G - Body ground
Illumination signal
(From door courtesy light front LH)
Passenger's side door is closed
10 to 14 V
DCYL (P1-13) - Body ground
G - Body ground
Illumination signal
(From door courtesy light front RH)
Driver's side door is open
Below 1 V
DCYL (P1-13) - Body ground
G - Body ground
Illumination signal
(From door courtesy light front RH)
Driver's side door is closed
10 to 14 V
LGCY (J75-25) - Body ground
L - Body ground
Illumination signal
(From luggage door courtesy switch)
Luggage door is open
Below 1 V
LGCY (J75-25) - Body ground
L - Body ground
Illumination signal
(From luggage door courtesy switch)
Luggage door is closed
10 to 14 V
PCTY (J75-23) - Body ground
B - Body ground
Illumination signal
(From door courtesy switch front LH)
Passenger's side door is open
Below 1 V
PCTY (J75-23) - Body ground
B - Body ground
Illumination signal
(From door courtesy switch front LH)
Passenger's side door is closed
10 to 14 V
HAZ (J74-2) - Body ground
Y - Body ground
HAZARD signal (From HAZARD switch)
HAZARD switch ON
Below 1 V
HAZ (J74-2) - Body ground
Y - Body ground
HAZARD signal (From HAZARD switch)
HAZARD switch OFF
10 to 14 V

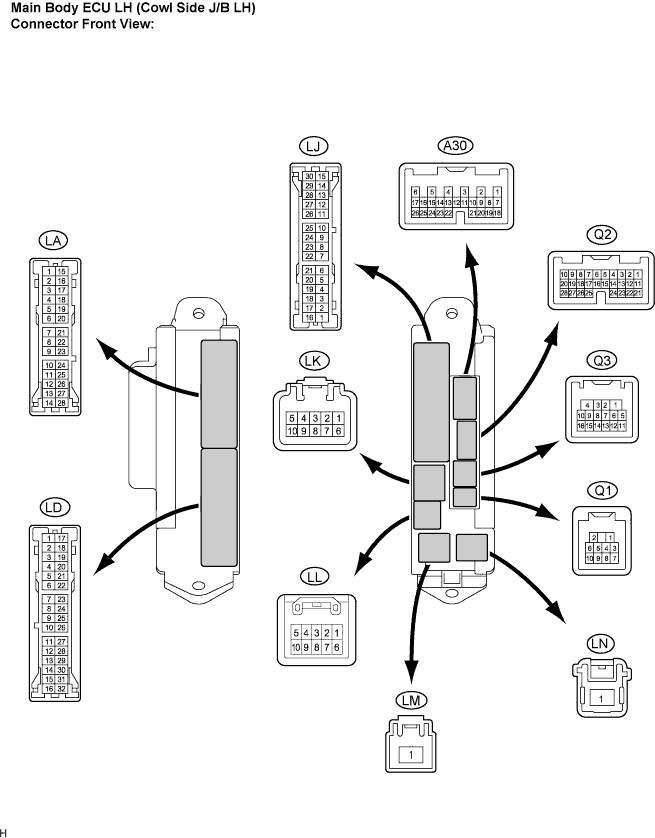

CHECK MAIN BODY ECU LH

Lexus Is250, Is220D. Gse20 Ale20.Lighting.Lighting System.Lighting System  Terminals Of Ecu


Symbols (Terminal No.)
Wiring Color
Terminal Description
Condition
Specified Condition
GND (LD-3) - Body ground
W-B - Body ground
Ground
Always
Below 1 V
TR (LA-15) - Body ground
P - Body ground
RH side turn signal
(To turn signal flasher assembly)
Engine switch off
Below 1 V
TR (LA-15) - Body ground
P - Body ground
RH side turn signal
(To turn signal flasher assembly)
Engine switch on (IG) and turn signal switch (right turn) on
10 to 14 V
(60 to 120 times per minute)
TL (LA-16) - Body ground
BR - Body ground
LH side turn signal
(To turn signal flasher assembly)
Engine switch off
Below 1 V
TL (LA-16) - Body ground
BR - Body ground
LH side turn signal
(To turn signal flasher assembly)
Engine switch on (IG) and turn signal switch (left turn) on
10 to 14 V
(60 to 120 times per minute)
SGND (LD-8) - Body ground
W-B - Body ground
Ground
Always
Below 1 V
SGND (LD-9) - Body ground
W-B - Body ground
Ground
Always
Below 1 V
MPXB (LD-18) - Body ground
LG - Body ground
Multiplex communication power source circuit
Always
10 to 14 V
ILE (A36-2) - Body ground
V - Body ground
Illumination signal
(To front interior light)
Interior light switch in DOOR position and interior lights come on
Below 1 V
ILE (A36-2) - Body ground
V - Body ground
Illumination signal
(To front interior light)
Interior light switch in DOOR position and interior lights go off
10 to 14 V
RCTY (Q1-3) - Body ground
R - Body ground
Illumination signal
(To shift illumination light rear RH)
Shift illumination comes on
Below 1 V
RCTY (Q1-3) - Body ground
R - Body ground
Illumination signal
(To shift illumination light rear RH)
Shift illumination goes off
10 to 14 V
LCTY (Q1-4) - Body ground
LG - Body ground
Illumination signal
(To door mirror foot lights)
Door mirror foot light comes on
10 to 14 V
MPX1 (Q3-15) - Body ground
GR - Body ground
Multiplex communication signal circuit
Engine switch on (IG)
Signal waveform
RFRL (LJ-25) - Body ground
O - Body ground
RR Foglight signal (to RR Foglight)
RR foglight switch off
10 to 14 V
RFRL (LJ-25) - Body ground
O - Body ground
RR Foglight signal (to RR Foglight)
RR foglight switch on
Below 1 V
MPX2 (A30-17) - Body ground
GR - Body ground
Multiplex communication signal circuit
Engine switch on (IG)
Signal waveform
ILE1 (LA-19) - Body ground
W - Body ground
Illumination signal (to scuff plate light)
Room light switch in DOOR position and scuff plate lights come on
Below 1 V
ILE1 (LA-19) - Body ground
W - Body ground
Illumination signal (to scuff plate light)
Room light switch in DOOR position and scuff plate lights go off
10 to 14 V
LGCY (Q3-3) - Body ground
W - Body ground
Illumination signal (to seat illumination)
Seat illumination comes on
Below 1 V
LGCY (Q3-3) - Body ground
W - Body ground
Illumination signal (to seat illumination)
Seat illumination goes off
10 to 14 V
BDCY (Q3-11) - Body ground
P - Body ground
Interior light switch (Door) signal
Interior light switch on
Below 1 V
BDCY (Q3-11) - Body ground
P - Body ground
Interior light switch (Door) signal
Interior light switch off
10 to 14 V

CHECK COMBINATION SWITCH ASSEMBLY (Windshield Wiper Switch)

Lexus Is250, Is220D. Gse20 Ale20.Lighting.Lighting System.Lighting System  Terminals Of Ecu


Symbols (Terminal No.)
Wiring Color
Terminal Description
Condition
Specified Condition
B (J26-1) - E (J26-5)
LG - W-B
Power source circuit
(From battery)
Always
10 to 14 V
IG (J26-2) - E (J26-5)
B - W-B
Engine switch signal circuit
(From engine switch)
Engine switch off
Below 1 V
IG (J26-2) - E (J26-5)
B - W-B
Engine switch signal circuit
(From engine switch)
Engine switch on (IG)
10 to 14 V
HEAD (J26-4) - Body ground
L - Body ground
Light control switch HEAD signal
Light control switch not in HEAD
10 to 14 V
HEAD (J26-4) - Body ground
L - Body ground
Light control switch HEAD signal
Light control switch in HEAD
Below 1 V
E (J26-5) - Body ground
W-B - Body ground
Ground
Always
Below 1 V
MPX1 (J26-6) - Body ground
GR - Body ground
Multiplex communication signal circuit
Engine switch on (IG)
Signal waveform
MPX2 (J26-7) - Body ground
GR - Body ground
Multiplex communication signal circuit
Engine switch on (IG)
Signal waveform

CHECK OVERHEAD J/B

Lexus Is250, Is220D. Gse20 Ale20.Lighting.Lighting System.Lighting System  Terminals Of Ecu


Symbols (Terminal No.)
Wiring Color
Terminal Description
Condition
Specified Condition
+B1 (R5-1) - Body ground
L - Body ground
Power source circuit
Always
10 to 14 V
RRMP (R5-3) - Body ground
O - Body ground
Rear personal light power source circuit
Always
10 to 14 V
ILLB (R5-4) - Body ground
L - Body ground
Rear interior light power source circuit
Always
10 to 14 V
CTY (R5-12) - Body ground
W - Body ground
Seat illumination light circuit
Seat illumination light goes off
10 to 14 V
CTY (R5-12) - Body ground
W - Body ground
Seat illumination light circuit
Seat illumination light comes on
Below 1 V
ILL (R5-13) - Body ground
BR - Body ground
Interior light circuit
Interior light goes off
10 to 14 V
ILL (R5-13) - Body ground
BR - Body ground
Interior light circuit
Interior light comes on
Below 1 V
SHFT (R5-14) - Body ground
Y - Body ground
Shift illumination circuit
Shift illumination goes off
10 to 14 V
SHFT (R5-14) - Body ground
Y - Body ground
Shift illumination circuit
Shift illumination comes on
Below 1 V
GND3 (R5-18) - Body ground
W-B - Body ground
Ground
Always
Below 1 V
RGND (R5-19) - GND3 (R5-18)
W-B - W-B
Interior light ground
Always
Below 1 V
LILL (R5-32) - CTY (R5-12)
B - W
Seat illumination circuit
Always
Below 1 Ω
RILL (R5-33) - ILL (R5-13)
P - BR
Interior light circuit
Always
Below 1 Ω
CILL (R5-34) - GND3 (R5-18)
P - W-B
Interior light switch (ON/OFF) circuit
Interior light switch off
10 to 14 V
CILL (R5-34) - GND3 (R5-18)
P - W-B
Interior light switch (ON/OFF) circuit
Interior light switch on
Below 1 V
DOOR (R5-35) - GND3 (R5-18)
G - W-B
Interior light switch (DOOR) circuit
Interior light switch off
10 to 14 V
DOOR (R5-35) - GND3 (R5-18)
G - W-B
Interior light switch (DOOR) circuit
Interior light switch on
Below 1 V

CHECK AFS ECU
*1: RHD
*2: LHD
*3: With AFS

Lexus Is250, Is220D. Gse20 Ale20.Lighting.Lighting System.Lighting System  Terminals Of Ecu


Symbols (Terminal No.)
Wiring Color
Terminal Description
Condition
Specified Condition
SBF (A28-1) - SGF (A28-17)
R-B - G-R
Vehicle height signal (To height control sensor)
Engine switch off
Below 1 V
Engine switch on (IG)
4.5 V to 5.5 V
SPDL (A28-6) - E1 (A27-1)
P-B - W-B *1
R-L - W-B *2
Vehicle speed signal
(To skid control ECU)
Vehicle is driving at approx. 30 km/h (19 mph)
Pulse generation
(see waveform 1)
SPDR (A28-7) - E1 (A27-1)
G-W - W-B
Vehicle speed signal
(To skid control ECU)
Vehicle is driving at approx. 30 km/h (19 mph)
Pulse generation
(see waveform 1)
BR1+ (A28-9) - BR1- (A28-10)
LG-R - O
Headlight swivel motor RH
Engine switch off
Below 1 V
Engine running, light control switch in HEAD, driving at more than 10 km/h (6 mph) and turning the steering wheel to right more than 7.5°
Pulse generation
(see waveform 2)
BR2+ (A28-11) - BR2- (A28-12)
L-B - L-Y
Headlight swivel motor RH
Engine switch off
Below 1 V
Engine running, light control switch in HEAD, driving at more than 10 km/h (6 mph) and turning the steering wheel more than 7.5°
Pulse generation
(see waveform 2)
LR1+ (A28-13) - LR1- (A28-14)
L - BR-W
Headlight leveling actuator RH
Engine switch off
Below 1 V
Engine running, light control switch in HEAD, the vehicle is standing still or bouncing
Pulse generation
(see waveform 3)
LR2+ (A28-15) - LR2- (A28-16)
P - LG
Headlight leveling actuator RH
Engine switch off
Below 1 V
Engine running, light control switch in HEAD, the vehicle is standing still or bouncing
Pulse generation
(see waveform 3)
SGF (A28-17) - E1 (A27-1)
G - R
Vehicle height signal (To height control sensor)
Always
Below 1 V
SMGR (A28-18) - E1 (A27-1)
W-R - W-B
Headlight swivel motor RH
Always
Below 1 V
SMGL (A28-19) - E1 (A27-1)
P-G - W-B
Headlight swivel motor LH
Always
Below 1 V
SMBR (A28-21) - SMGR (A28-18)
GR - W-R
Headlight swivel motor RH
Engine switch off
Below 1 V
Engine switch on (IG)
4.5 V to 5.5 V
SMBL (A28-22) - SMGL (A28-19)
W - P-G
Headlight swivel motor LH
Engine switch off
Below 1 V
Engine switch on (IG)
4.5 V to 5.5 V
SMR (A28-23) - SMGR (A28-18)
G-B - W-R
Headlight swivel motor RH
Engine switch off
Below 1 V
Engine switch on (IG)
0.3 V to 4.6 V
SML (A28-24) - SMGL (A28-19)
Y-B - P-G
Headlight swivel motor LH
Engine switch off
Below 1 V
Engine switch on (IG)
0.3 V to 4.6V
BL1+ (A28-25) - BL1-(A28-26)
B-L - L-W
Headlight swivel motor LH
Engine switch off
Below 1 V
Engine running, light control switch in HEAD, driving at more than 10 km/h (6 mph) and turning the steering wheel to left more than 7.5°
Pulse generation
(see waveform 2)
BL2+ (A28-27) - BL2-(A28-28)
L-R - B-Y
Headlight swivel motor LH
Engine switch off
Below 1 V
Engine running, light control switch in HEAD, driving at more than 10 km/h (6 mph) and turning the steering wheel to left more than 7.5°
Pulse generation
(see waveform 2)
LL1+ (A28-29) - LL1-(A28-30)
R-G - G
Headlight leveling actuator LH
Engine switch off
Below 1 V
Engine running, light control switch in HEAD, the vehicle is standing still or bouncing
Pulse generation
(see waveform 3)
LL2+ (A28-31) - LL2-(A28-32)
Y-R - V-R
Headlight leveling actuator LH
Engine switch off
Below 1 V
Engine running, light control switch in HEAD, the vehicle is standing still or bouncing
Pulse generation
(see waveform 3)
E1 (A27-1) - Body ground
W-B - Body ground
Ground
Always
Below 1 V
IG (A27-2) - E1 (A27-1)
B-O - W-B
Power source circuit
(To engine switch)
Engine switch off
Below 1 V
Engine switch on (IG)
10 to 14 V
MPX1 (A27-5) - E1 (A27-1)
BR - W-B *3
Multiplex communication signal
Engine switch on (IG)
Signal waveform
MPX2 (A27-6) - E1 (A27-1)
BR-B - W-B *3
Multiplex communication signal
Engine switch on (IG)
Signal waveform
SS+ (A27-7) -SS- (A27-8)
L - LG
Steering sensor signal
(To position sensor)
Engine idling, slowly turn steering wheel
Pulse generation
SHRL (A27-9) - SGR (A27-20)
B-W - R-Y
Vehicle height signal
(To height control sensor rear)
Engine switch off
Below 1 V
Engine switch on (IG) , bouncing the vehicle
0.5 to 4.5 V
SHFL (A28-2) - SGF (A28-17)
G-Y - G-R
Vehicle height signal
(To height control sensor front)
Engine switch off
Below 1 V
Engine switch on (IG) , bouncing the vehicle
0.5 to 4.5 V
SBR (A27-10) - SGR (A27-20)
W - R-Y
Vehicle height signal
(To height control sensor rear)
Engine switch off
Below 1 V
Engine switch on (IG)
4.5 to 5.5 V
SBF (A28-1) - SGF (A28-17)
R-B - G-R
Vehicle height signal
(To height control sensor front)
Engine switch off
Below 1 V
Engine switch on (IG)
4.5 to 5.5 V


    Lexus Is250, Is220D. Gse20 Ale20.Lighting.Lighting System.Lighting System  Terminals Of Ecu
  1. Waveform 1

    Item
    Contents
    Terminal
    SPDL - GND
    SPDR - GND
    Tool setting
    5 V/DIV., 2 ms./DIV.
    Vehicle condition
    Vehicle is driving at approximately 30 km/h (19 mph)


  2. Lexus Is250, Is220D. Gse20 Ale20
  3. Waveform 2

    Item
    Contents
    Terminal
    BL1+ - BL1-
    BL2+ - BL2-
    BR1+ - BR1-
    BR2+ - BR2-
    Tool setting
    10 V/DIV., 5 ms./DIV.
    Vehicle condition
    1. Engine running, light control switch in HEAD, driving at more than 10 km/h (6 mph) and turning the steering wheel more than 7.5°
    2. If the value is not within the standard range, it is possible there is some defect on the vehicle side. Inspect the fuse, wire harness and connector.


  4. Lexus Is250, Is220D. Gse20 Ale20
  5. Waveform 3

    Item
    Contents
    Terminal
    LR1+ - LR1-
    LR2+ - LR2-
    LL1+ - LL1-
    LL2+ - LL2-
    Tool setting
    10 V/DIV., 5 ms./DIV.
    Vehicle condition
    1. Engine running, light control switch in HEAD, driving at more than 10 km/h (6 mph) and turning the steering wheel more than 7.5°
    2. If the value is not within the standard range, it is possible there is some defect on the vehicle side. Inspect the fuse, wire harness and connector.
