Wiper And Washer System Headlight Cleaner Switch Circuit
DESCRIPTION
WIRING DIAGRAM
INSPECTION PROCEDURE
CHECK MAIN BODY ECU RH (COWL SIDE J/B RH) (HDLO SIGNAL)
INSPECT FRONT CONTROLLER (ENGINE ROOM NO. 2 J/B) (FRWA SIGNAL)
CHECK HEADLIGHT CLEANER SWITCH ASSEMBLY
CHECK MAIN BODY ECU RH (COWL SIDE J/B RH) (HRLY SIGNAL)
CHECK HARNESS AND CONNECTOR (HEADLIGHT CLEANER CONTROL RELAY - MAIN BODY ECU RH)
CHECK HARNESS AND CONNECTOR (HEADLIGHT CLEANER CONTROL RELAY - FRONT CONTROLLER)
CHECK HARNESS AND CONNECTOR (HEADLIGHT CLEANER SWITCH ASSEMBLY - MAIN BODY ECU RH)
WIPER AND WASHER SYSTEM - Headlight Cleaner Switch Circuit |
DESCRIPTION
This circuit detects the conditions (on or off) of the headlight cleaner switch.The headlight cleaner control relay receives the following signals:- Headlight cleaner switch signal
- Headlight operating signal
- Daytime running light operating signal
- Front washer motor operating signal

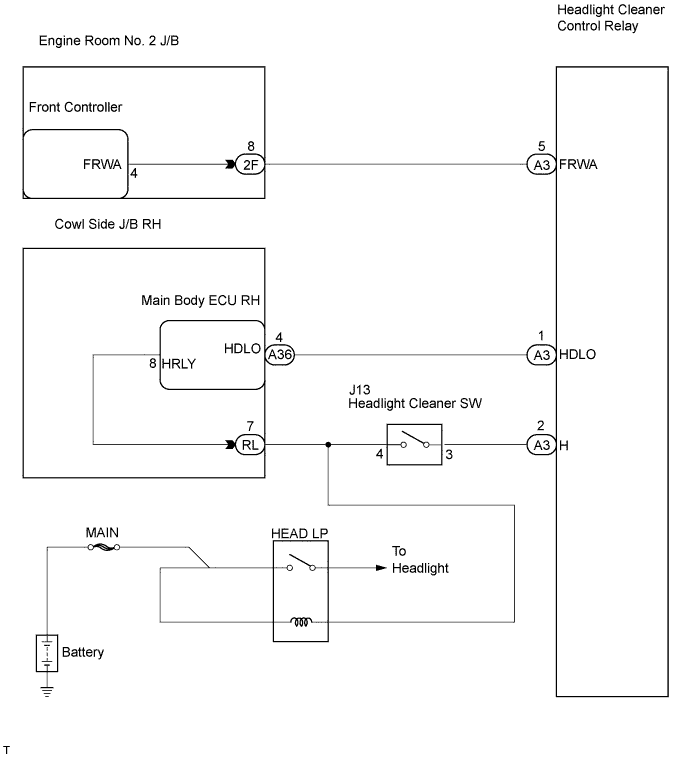

WIRING DIAGRAM
INSPECTION PROCEDURE

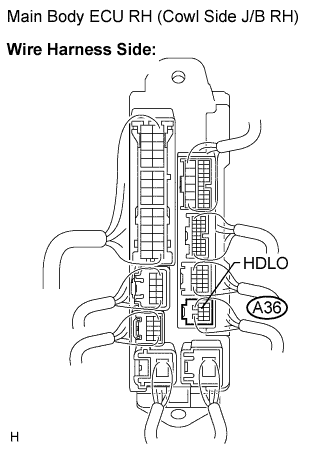

1.CHECK MAIN BODY ECU RH (COWL SIDE J/B RH) (HDLO SIGNAL) |
Measure the voltage according to the value(s) in the table below.
- Standard voltage:
Tester Connection
| Condition
| Specified Condition
|
A36-4 (HDLO) - Body ground
| Engine switch on (IG) and light control switch OFF
| 10 to 14 V
|
A36-4 (HDLO) - Body ground
| Engine switch on (IG) and light control switch in HEAD position
| Below 1 V
|

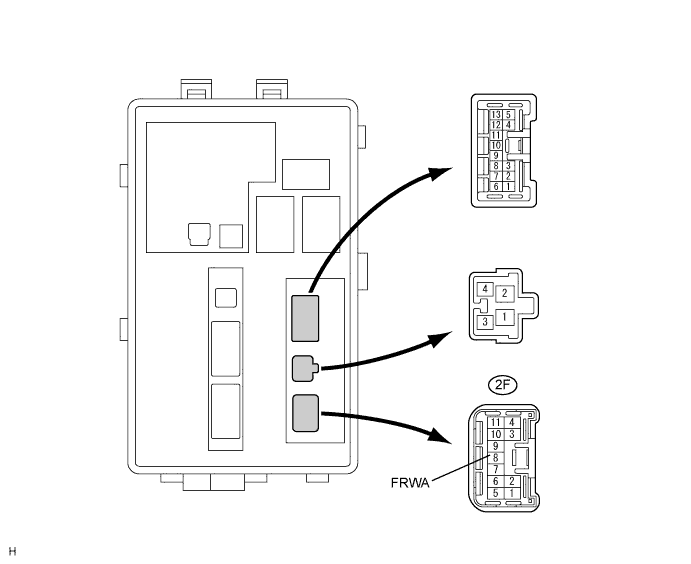

2.INSPECT FRONT CONTROLLER (ENGINE ROOM NO. 2 J/B) (FRWA SIGNAL) |
Measure the voltage according to the value(s) in the table below.
- Standard voltage:
Tester Connection
| Condition
| Specified Condition
|
2F-8 (FRWA) - Body ground
| Engine switch on (IG) and front washer is stopped
| 10 to 14 V
|
2F-8 (FRWA) - Body ground
| Engine switch on (IG) and front washer is operated
| Below 1 V
|
3.CHECK HEADLIGHT CLEANER SWITCH ASSEMBLY |
Disconnect the connector from the headlight cleaner switch assembly.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection
| Condition
| Specified Condition
|
4 - 3
| Headlight cleaner switch not pushed
| 10 kΩ or higher
|
4 - 3
| Headlight cleaner switch pushed
| Below 1 Ω
|
| REPLACE HEADLIGHT CLEANER SWITCH ASSEMBLY |
|
|

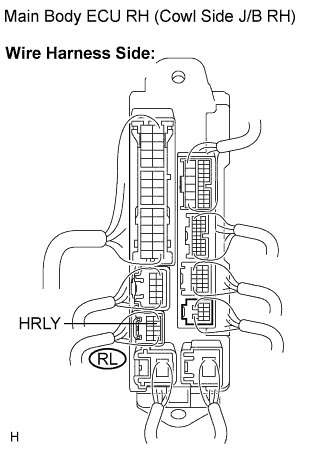

4.CHECK MAIN BODY ECU RH (COWL SIDE J/B RH) (HRLY SIGNAL) |
Measure the voltage according to the value(s) in the table below.
- Standard voltage:
Tester Connection
| Condition
| Specified Condition
|
RL-7 (HRLY) - Body ground
| Engine switch on (IG) and headlight cleaner switch OFF
| Below 1 V
|
RL-7 (HRLY) - Body ground
| Engine switch on (IG) and headlight cleaner switch ON
| 10 to 14 V
|
OK |
|
|
|
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE |
|

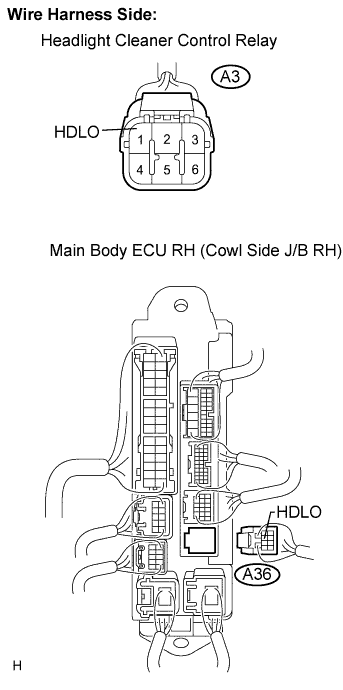

5.CHECK HARNESS AND CONNECTOR (HEADLIGHT CLEANER CONTROL RELAY - MAIN BODY ECU RH) |
Disconnect the A3 headlight cleaner control relay connector.
Disconnect the A36 main body ECU RH (cowl side J/B RH) connector.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connector
| Condition
| Specified Condition
|
A3-1 (HDLO) - A36-1 (HDLO)
| Always
| Below 1 Ω
|
A3-1 (HDLO) - Body ground
| Always
| 10 k Ω or higher
|
| REPAIR OR REPLACE HARNESS OR CONNECTOR (HEADLIGHT CLEANER CONTROL RELAY - MAIN BODY ECU RH) |
|
|
OK |
|
|
|
REPAIR OR REPLACE HARNESS OR CONNECTOR (MAIN BODY ECU RH (COWL SIDE J/B RH) - BATTERY) |
|

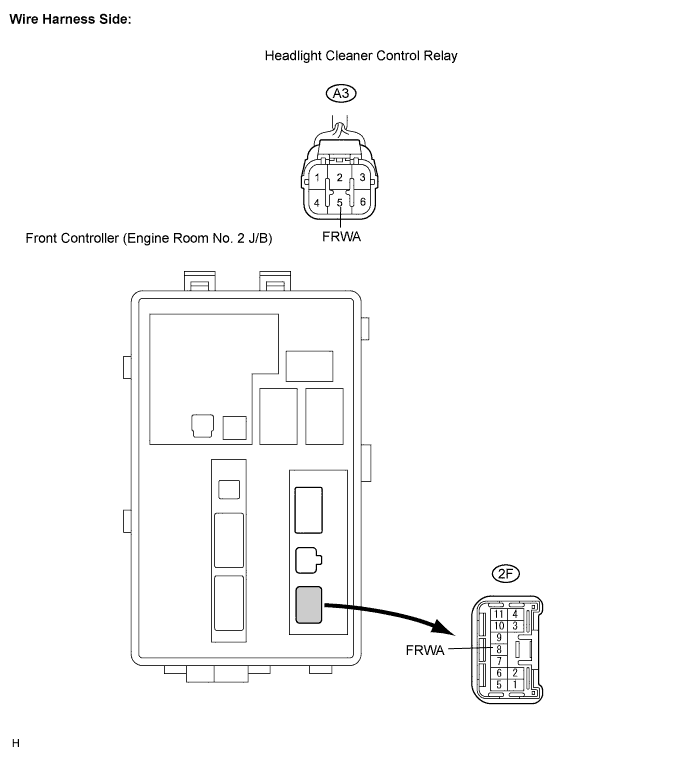

6.CHECK HARNESS AND CONNECTOR (HEADLIGHT CLEANER CONTROL RELAY - FRONT CONTROLLER) |
Disconnect the 2F front controller (engine room No. 2 J/B) connector.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection
| Condition
| Specified Condition
|
A3-5 (FRWA) - 2F-8 (FRWA)
| Always
| Below 1 Ω
|
A3-5 (FRWA) - Body ground
| Always
| 10 k Ω or higher
|
| REPAIR OR REPLACE HARNESS OR CONNECTOR (HEADLIGHT CLEANER CONTROL RELAY - FRONT CONTROLLER) |
|
|
OK |
|
|
|
REPAIR OR REPLACE HARNESS OR CONNECTOR (FRONT CONTROLLER (OVERHEAD J/B) - BATTERY) |
|

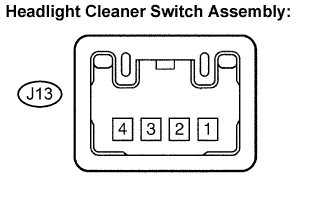

7.CHECK HARNESS AND CONNECTOR (HEADLIGHT CLEANER SWITCH ASSEMBLY - MAIN BODY ECU RH) |
Disconnect the J13 headlight cleaner switch assembly connector.
Disconnect the RL main body ECU RH (cowl side J/B RH) connector.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection
| Condition
| Specified Condition
|
J13-4 (L) - RL-7 (HRLY)
| Always
| Below 1 Ω
|
RL-7 (HRLY) - Body ground
| Always
| 10 k Ω or higher
|
| REPAIR OR REPLACE HARNESS OR CONNECTOR (HEADLIGHT CLEANER SWITCH ASSEMBLY - MAIN BODY ECU RH) |
|
|
OK |
|
|
|
REPAIR OR REPLACE HARNESS OR CONNECTOR (MAIN BODY ECU RH (COWL SIDE J/B RH) - BATTERY) |
|
