Engine. Lexus Is250, Is220D. Gse20 Ale20
4Gr-Fse Fuel. Lexus Is250, Is220D. Gse20 Ale20
Fuel System -- System Diagram |
| FUEL FLOW DIAGRAM |

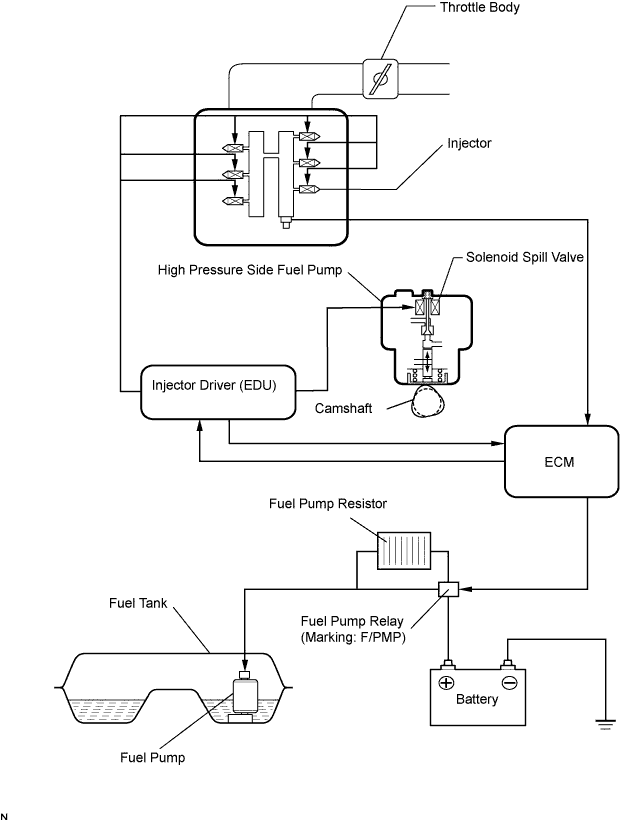

| ELECTRICAL CONTROL DIAGRAM |

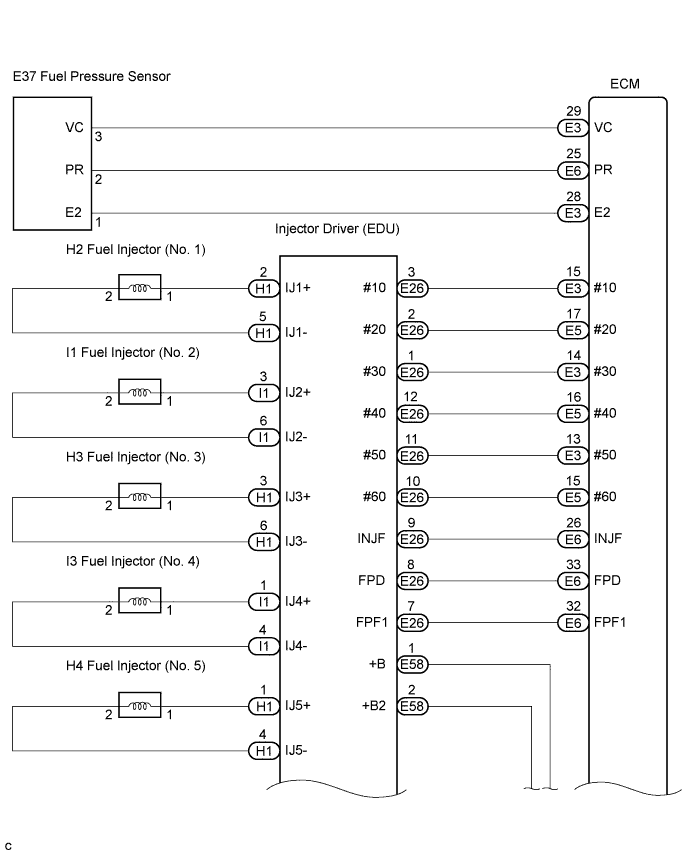

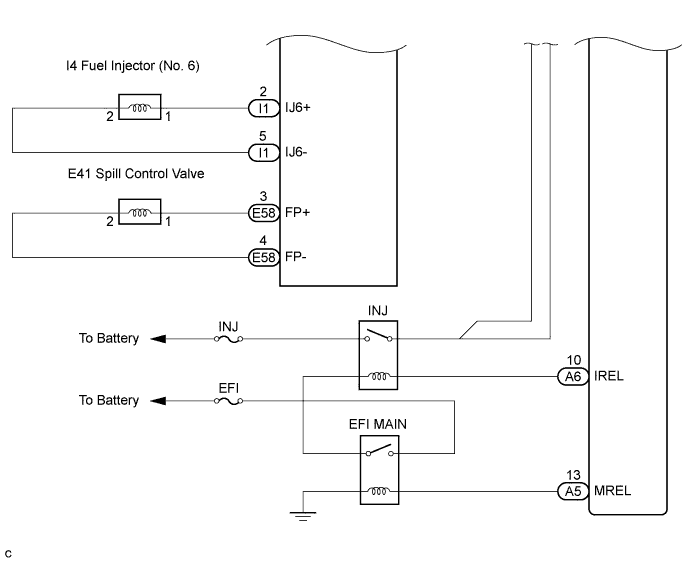

| HIGH PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM |

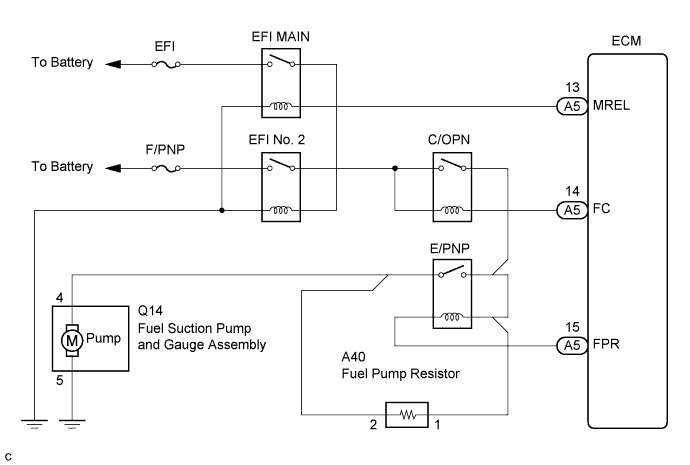

| LOW PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM |
