DTC P0016 Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor A)

DTC P0017 Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor B)

DTC P0018 Crankshaft Position - Camshaft Position Correlation (Bank 2 Sensor A)

DTC P0019 Crankshaft Position - Camshaft Position Correlation (Bank 2 Sensor B)


DESCRIPTION

In the VVT system, the appropriate intake and exhaust valve open and close timing is controlled by the ECM. The ECM performs intake and exhaust valve control by performing the following: 1) controlling the camshaft and camshaft oil control valve, and operating the camshaft timing gear; and 2) changing the relative positions of the gaps between the camshaft and crankshaft

DTC No.
DTC Detection Condition
Trouble Area
P0016
Deviation in crankshaft position sensor signal and VVT sensor 1 (for intake camshaft (bank 1)) signal (2 trip detection logic)
  1. Mechanical system (Timing chain has jumped tooth or chain stretched)
  2. ECM
P0017
Deviation in crankshaft position sensor signal and VVT sensor 1 (for exhaust camshaft (bank 1)) signal (2 trip detection logic)
  1. Mechanical system (Timing chain has jumped tooth or chain stretched)
  2. ECM
P0018
Deviation in crankshaft position sensor signal and VVT sensor 2 (for intake camshaft (bank 2)) signal (2 trip detection logic)
  1. Mechanical system (Timing chain has jumped tooth or chain stretched)
  2. ECM
P0019
Deviation in crankshaft position sensor signal and VVT sensor 2 (for exhaust camshaft (bank 2)) signal (2 trip detection logic)
  1. Mechanical system (Timing chain has jumped tooth or chain stretched)
  2. ECM

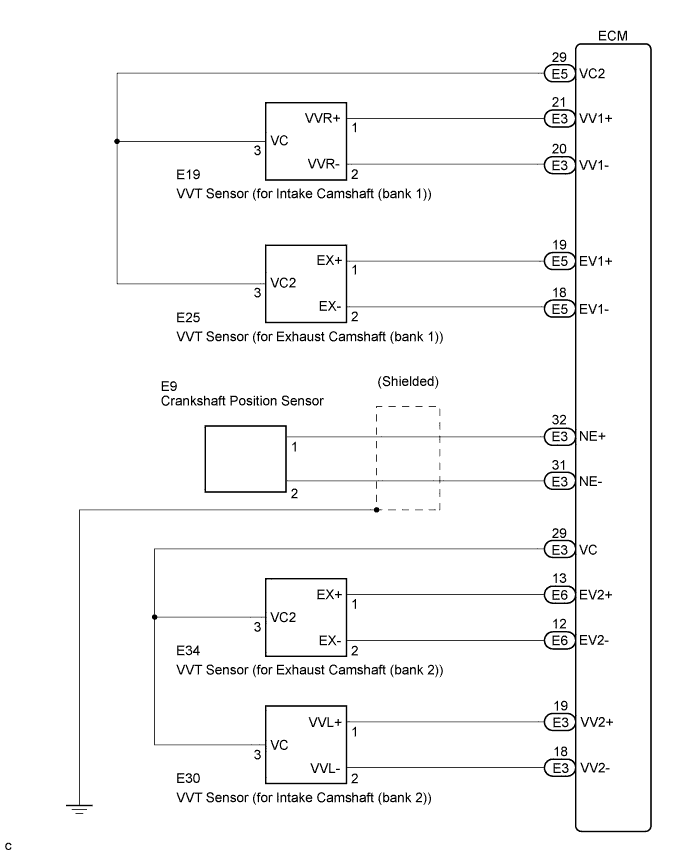

WIRING DIAGRAM


Lexus Is250, Is220D. Gse20 Ale20.4Gr-Fse Engine Control System.Sfi System. Dtc P0016 Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor A)


INSPECTION PROCEDURE

HINT:
Read freeze frame data using the intelligent tester. Freeze frame data records the engine conditions when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred (Click here).
1.CHECK VALVE TIMING (CHECK FOR LOOSE AND A JUMPED TOOTH OF TIMING CHAIN)


    Lexus Is250, Is220D. Gse20 Ale20.4Gr-Fse Engine Control System.Sfi System. Dtc P0016 Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor A)

  1. Remove the cylinder head covers RH and LH.

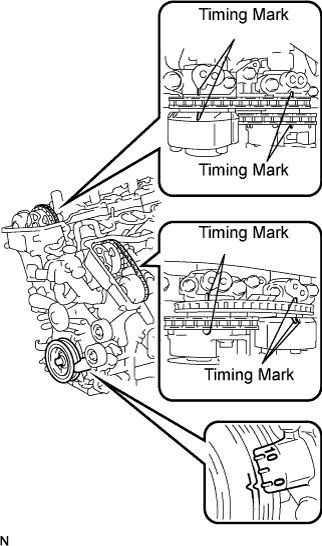

  1. Turn the crankshaft pulley, and align its groove with the timing mark "0" of the timing chain cover.

  1. Check that the timing marks of the camshaft timing gears are aligned with the timing marks of the bearing cap as shown in the illustration.

    1. If not, turn the crankshaft 1 revolution (360°), then align the marks as above.
      OK:
      Timing marks on camshaft timing gears are aligned as shown in the illustration.

  1. Reinstall the cylinder head covers.



NG
ADJUST VALVE TIMING (REPAIR OR REPLACE TIMING CHAIN)
OK

REPLACE ECM
