Shift Lever Assembly Disassembly

Transmission. Lexus Is250, Is220D. Gse20 Ale20
A960E Automatic Transmission. Lexus Is250, Is220D. Gse20 Ale20

  1. REMOVE SHIFT POSITION INDICATOR

  2. REMOVE TRANSMISSION CONTROL SWITCH

  3. REMOVE SHIFT LOCK CONTROL ECU SUB-ASSEMBLY

Shift Lever Assembly -- Disassembly



1. REMOVE SHIFT POSITION INDICATOR


    Lexus Is250, Is220D. Gse20 Ale20

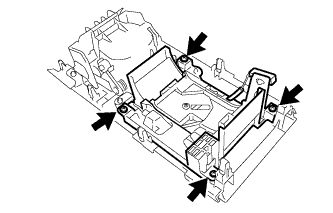

  1. Remove the 4 screws and shift position indicator.



2. REMOVE TRANSMISSION CONTROL SWITCH


    Lexus Is250, Is220D. Gse20 Ale20

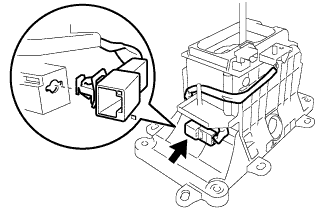

  1. Remove the transmission control switch connector from the floor shift assembly.



    Lexus Is250, Is220D. Gse20 Ale20

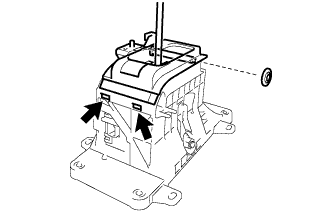

  1. Remove the shift lever nut and lock pin from the floor shift assembly.

  1. Remove the shift lever guide housing from the floor shift assembly.

    NOTICE:
    First remove the shift lever nut and lock pin, then disengage the 2 claws.


    Lexus Is250, Is220D. Gse20 Ale20

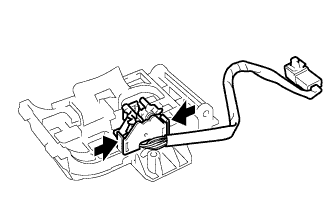

  1. Remove the transmission control switch from the shift lever guide housing.



3. REMOVE SHIFT LOCK CONTROL ECU SUB-ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20.A960E Automatic Transmission.Automatic Transmission System.Shift Lever Assembly Disassembly

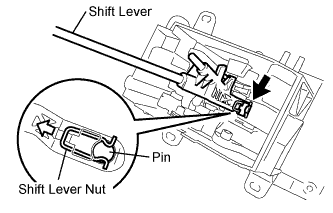

  1. Remove the shift lever nut, and pull the pin.

  1. Remove the shift lever sub-assembly.



    Lexus Is250, Is220D. Gse20 Ale20

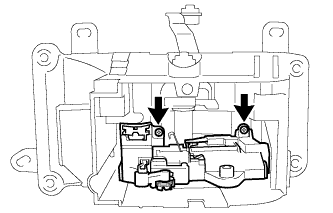

  1. Remove the 2 screws and shift lock control ECU sub-assembly.
