Shift Lever Assembly Removal

Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly.

Using a moulding remover, disengage the claw.

Pull the upper No. 1 console panel garnish in the direction indicated by the arrow to disengage the 2 clips and remove it.

Using a moulding remover, disengage the claw.

Pull the upper No. 2 console panel garnish in the direction indicated by the arrow to disengage the 2 clips and remove it.

Disengage the 8 clips.

Disconnect the connectors and remove the console panel sub-assembly.

Remove the 2 screws <F>.

Pull the front ash receptacle sub-assembly in the direction indicated by the arrow to disconnect the connectors and remove it.

Remove the rear ash receptacle assembly.

Disengage the 2 claws and 4 clips, and then remove the console box register assembly.

Remove the 2 bolts <C>.

Disconnect the 2 connectors.

Disengage the 2 clamps.

Remove the 2 bolts <C>.

Disconnect the connector.

Remove the 2 bolts <C>.

Disengage the 2 claws and 2 clips, and then remove the console box.

Remove the 2 clips and No. 2 console box duct.

Remove the 4 bolts and rear No. 1 floor panel brace.

Remove the 4 bolts and front center floor brace .

Remove the grommets of the heated oxygen sensors (BANK 1, BANK 2).

Using the SST, remove a oxygen sensors (BANK 1, BANK 2).

SST

09224-00010

Remove the 4 bolts and 4 nuts.

Remove the 2 bolts and 2 compression springs from the tail exhaust pipe assembly.

Remove the front exhaust pipe assembly and 3 gaskets.

Remove the 4 nuts and front No. 1 floor heat insulator.

Remove the nut and separate the floor shift gear shifting rod sub-assembly.

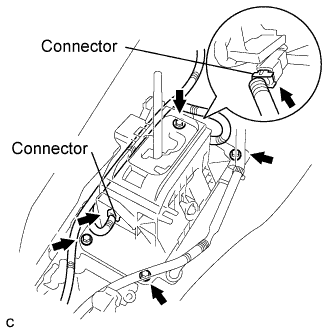

Disconnect the 2 connectors.

Remove the 4 bolts.

Remove the floor shift assembly.
