Torque Converter And Drive Plate Installation

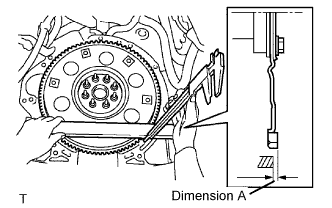

Using calipers and a straight edge, measure dimension A between the engine and the end surface of the drive plate (#1).

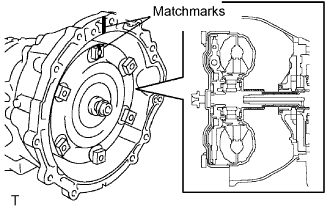

Aligning the matchmarks on the transmission case and torque converter, engage the splines of the input shaft and turbine runner.

Engage the splines of the stator shaft and stator while turning the torque converter clutch.

HINT:

Turn the torque converter clutch approximately 180°.

Turn the torque converter clutch and align the matchmarks on the torque converter clutch and transmission case to engage the key of the oil pump drive gear into the slot on the torque converter clutch.

NOTICE:

Do not push on the torque converter when aligning the matchmarks.

Using calipers and a straight edge, measure dimension B shown in the illustration and check that B is greater than A measured in step (#1).

Standard:

A + 1 mm (0.04 in.) or more

Coat 2 new O-rings with ATF and install them to the transmission oil cooler.

Install the transmission oil cooler to the automatic transmission assembly with the 3 bolts.

Torque:

21 N*m{214 kgf*cm, 15 ft.*lbf}

Install the transmission control shaft to the neutral start switch assembly with the nut.

Torque:

16 N*m{163 kgf*cm, 12 ft.*lbf}

Install the rear No. 1 engine mounting insulator to the automatic transmission assembly with the 4 bolts.

Torque:

12 N*m{120 kgf*cm, 9 ft.*lbf}

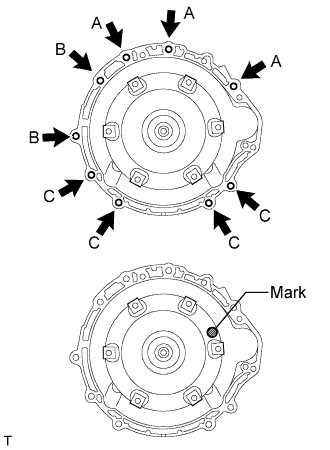

Install the automatic transmission assembly to the engine with the 9 bolts.

Torque:

Bolts A and B:

71 N*m{724 kgf*cm, 52 ft.*lbf}

Bolt C:

37 N*m{377 kgf*cm, 27 ft.*lbf}

HINT:

1. Make sure that the mark is as shown in the illustration.

2. Do not use excess force to pry on the transmission assembly.


Tilt down the automatic transmission assembly.

Install the 2 water by-pass hoses to the transmission assembly.

Install the water by-pass hose clamp with the bolt.

Torque:

20 N*m{204 kgf*cm, 15 ft.*lbf}

Install the wire harness clamps to the automatic transmission assembly with the 2 bolts.

Torque:

10 N*m{102 kgf*cm, 7 ft.*lbf}

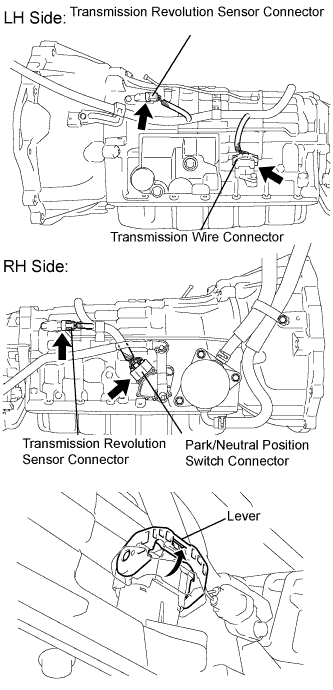

Connect the park/neutral position switch connector, transmission wire connector, and 2 transmission revolution sensor connectors.

HINT:

Push up the lever until the claw of the transmission wire connector makes a connection sound.

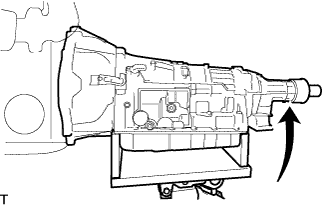

Tilt up the automatic transmission assembly.

Install the engine rear mounting member to the automatic transmission assembly with the 4 nuts.

Torque:

13 N*m{133 kgf*cm, 10 ft.*lbf}

Install the engine rear mounting member to the body with the 4 bolts.

Torque:

26 N*m{260 kgf*cm, 19 ft.*lbf}

Temporarily tighten the floor shift gear shifting rod sub-assembly with the nut.

Install the No. 1 exhaust pipe support bracket sub-assembly to the automatic transmission assembly with the 2 bolts.

Torque:

43 N*m{438 kgf*cm, 32 ft.*lbf}

Install the 6 torque converter clutch setting bolts.

Torque:

41 N*m{418 kgf*cm, 30 ft.*lbf}

HINT:

First install the black colored bolt and then the remaining 5 bolts.

Install the starter with the 2 bolts.

Torque:

58 N*m{591 kgf*cm, 43 ft.*lbf}

Connect the wire harness to terminal 30 and install the nut, and then attach the terminal cap.

Torque:

9.8 N*m{100 kgf*cm, 87 in.*lbf}

Connect the terminal 50 connector to the starter assembly.

Install a new gasket and the exhaust manifold with 6 new nuts.

Torque:

21 N*m{214 kgf*cm, 15 ft.*lbf}

Connect the air fuel ratio sensor (for sensor 1) connector.

Install the engine wire bracket with the bolt (A).

Torque:

10 N*m{102 kgf*cm, 7 ft.*lbf}

Install the ground cable with the 2 bolts (B, C).

Torque:

Bolt (B):

10 N*m{102 kgf*cm, 7 ft.*lbf}

Bolt (C):

13 N*m{133 kgf*cm, 10 ft.*lbf}

Remove the SST from the transmission.

SST

09325-40010

Insert the yoke of the intermediate shaft into the transmission.

HINT:

Be careful not to damage the oil seal.

Install the 2 center support bearing washers and center support bearing. (for automatic transmission)

Install the 2 center support bearing washers, center support bearing and 2 center support bearing dampers. (for manual transmission)

Temporarily tighten the 2 bolts.

Align the matchmarks on the propeller shaft flange and differential companion flange, and connect the shaft with the 4 bolts, washers and nuts.

Torque:

74 N*m{750 kgf*cm, 54 ft.*lbf}

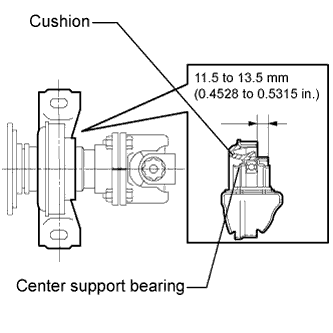

Adjust the dimension between the edge surface of the center support bearing and the edge surface of the cushion to 11.5 to 13.5 mm (0.4528 to 0.5315 in.) as shown in illustration.

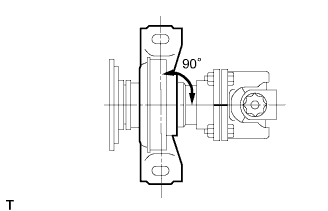

Check that the center line of the bracket is perpendicular to the shaft axial direction.

Tighten the 2 bolts.

Torque:

49 N*m{500 kgf*cm, 36 ft.*lbf}

Install the air guide plate outside RH with the 4 nuts.

Torque:

5.4 N*m{55 kgf*cm, 48 in.*lbf}

Remove the nut and disconnect the shifting rod.

Turn the control shaft lever of the park/neutral position switch counterclockwise until it stops, and turn it clockwise 2 notches to set it to the N position.

Move the shift lever to the N position and tighten the nut while lightly pushing the lever toward the R position.

NOTICE:

Do not push the shift lever too hard.

After adjustment, check that the shift lever moves smoothly and the shift lever and gear operate correctly.

When shifting from the P to R position with the engine switch on (IG) and the brake pedal depressed, make sure that the shift lever moves smoothly and moves correctly into the position.

Start the engine and make sure that the vehicle moves forward when shifting from the N to D position and moves rearward when shifting to the R position.
If operation cannot be done as specified, inspect the park/neutral position switch assembly and check the shift lever assembly installation condition.

Install the No. 1 heat insulator with the 4 nuts.

Torque:

5.4 N*m{55 kgf*cm, 48 in.*lbf}

Using a vernier caliper, measure the free length of the compression springs.

Minimum length:

38.5 mm (1.516 in.)

Install a new gasket to the rear end of the front exhaust pipe.

NOTICE:

1. Be careful with the installation direction of the gasket.


1. Do not reuse the gasket.


1. To ensure a proper seal, do not use the tail exhaust pipe to force the gasket onto the front exhaust pipe.


   HINT:

   Using a plastic hammer, uniformly strike the gasket so that the gasket and front exhaust pipe are properly fit.

Install 3 new gaskets and front exhaust pipe assembly.

CAUTION:

Do not reuse the gaskets.

Install the 2 bolts and 2 compression springs.

Torque:

43 N*m{438 kgf*cm, 32 ft.*lbf}

Install 4 new nuts and 4 bolts.

Torque:

62 N*m{632 kgf*cm, 46 ft.*lbf}

NOTICE:

Do not reuse the nuts.

Before installing the heated oxygen sensors, twist the sensor wires counterclockwise 4 turns.

Using the SST, install the heated oxygen sensors to the front exhaust pipe.

SST

09224-00010

Torque:

44 N*m{449 kgf*cm, 33 ft.*lbf}

After installing the sensors, check that the sensor wires are not twisted.
If the sensor wires are twisted, reinstall them.

Install the grommets of the heated oxygen sensors.

Install the front center floor brace with the 4 bolts.

Torque:

7.4 N*m{75 kgf*cm, 65 in.*lbf}

Install the rear No. 1 floor panel brace with the 4 bolts.

Torque:

19 N*m{194 kgf*cm, 14 ft.*lbf}

Fill the radiator with coolant and attach a radiator cap tester.

Warm up the engine.

Using a radiator cap tester, increase the pressure inside the radiator to 118 kPa (1.2 kgf*cm², 17 psi), and check that the pressure does not drop.
If the pressure drops, check the hoses, radiator and water pump for leaks. If no external leaks are found, check the heater core, cylinder block and cylinder head.

Install the engine under cover air guide bracket with the 2 bolts.

Torque:

26 N*m{265 kgf*cm, 19 ft.*lbf}

Install the side cover with the 5 clips.

Install the intake duct seal with the 11 clips.
