Speed Sensor Inspection

Transmission. Lexus Is250, Is220D. Gse20 Ale20
A960E Automatic Transmission. Lexus Is250, Is220D. Gse20 Ale20

  1. INSPECT TRANSMISSION REVOLUTION SENSOR (NT)

  2. INSPECT TRANSMISSION REVOLUTION SENSOR (SP2)

Speed Sensor -- Inspection



1. INSPECT TRANSMISSION REVOLUTION SENSOR (NT)


    Lexus Is250, Is220D. Gse20 Ale20.A960E Automatic Transmission.Automatic Transmission System.Speed Sensor Inspection

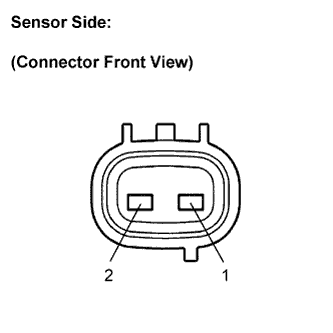

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance
    Tester Connection
    		Specified Condition (20°C (68°F))
    1 - 2
    		560 to 680 Ω
    If the resistance value is not as specified, replace the speed sensor.


2. INSPECT TRANSMISSION REVOLUTION SENSOR (SP2)


    Lexus Is250, Is220D. Gse20 Ale20.A960E Automatic Transmission.Automatic Transmission System.Speed Sensor Inspection

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance
    Tester Connection
    		Specified Condition (20°C (68°F))
    1 - 2
    		560 to 680 Ω
    If the resistance value is not as specified, replace the speed sensor.
