Park / Neutral Position Switch Inspection

Transmission. Lexus Is250, Is220D. Gse20 Ale20
A960E Automatic Transmission. Lexus Is250, Is220D. Gse20 Ale20

  1. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY

Park / Neutral Position Switch -- Inspection



1. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20.A960E Automatic Transmission.Automatic Transmission System.Park / Neutral Position Switch Inspection

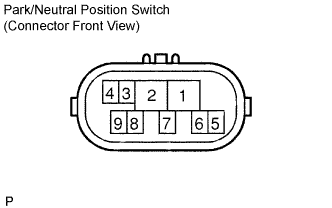

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Shift Position
    		Tester Connection
    		Specified Condition
    P
    		2 - 6 and 4 - 5
    		Below 1 Ω
    Except P
    		2 - 6 and 4 - 5
    		10 kΩ higher
    R
    		1 - 2
    		Below 1 Ω
    Except R
    		1 - 2
    		10 kΩ higher
    N
    		2 - 9 and 4 - 5
    		Below 1 Ω
    Except N
    		2 - 9 and 4 - 5
    		10 kΩ higher
    D, S, "+" and "-"
    		2 - 7
    		Below 1 Ω
    Except D, S, "+" and "-"
    		2 - 7
    		10 kΩ higher
    If the resistance value is not as specified, replace the park/neutral position switch assembly.
