Transmission. Lexus Is250, Is220D. Gse20 Ale20
Clutch. Lexus Is250, Is220D. Gse20 Ale20
Clutch Unit -- Removal |
| 1. REMOVE MANUAL TRANSMISSION ASSEMBLY |

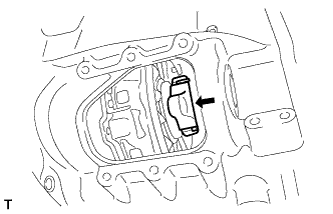

| 2. REMOVE CLUTCH RELEASE FORK SUB-ASSEMBLY |
Remove the clutch release fork sub-assembly from the transmission unit.
 |

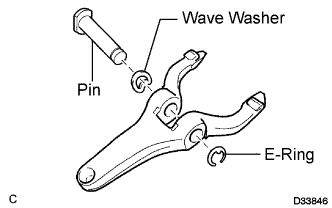

Remove the E-ring, pin and wave washer from the clutch release fork.
 |
| 3. REMOVE CLUTCH DISC ASSEMBLY |
- NOTICE:
- Keep the lining part of the clutch disc assembly, the pressure plate and surface of the flywheel sub-assembly away from oil and foreign matter.
| 4. REMOVE CLUTCH COVER ASSEMBLY |
| 5. REMOVE CLUTCH RELEASE BEARING SHAFT SNAP RING |

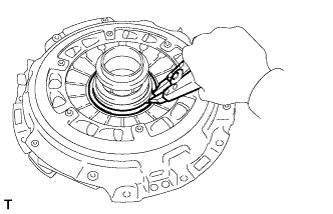

Using a snap ring expander, remove the clutch release bearing shaft snap ring.
 |

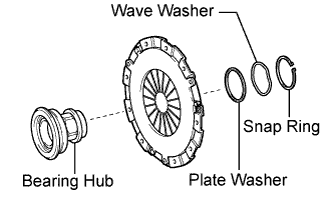

Remove the clutch release bearing hub, release bearing wave washer and release bearing plate washer.
 |
| 6. REMOVE CLUTCH RELEASE HUB SNAP RING |

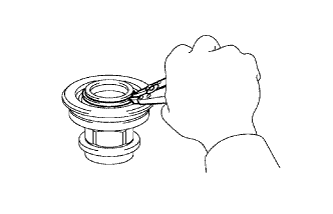

Using a snap ring expander, remove the clutch release hub snap ring.
 |

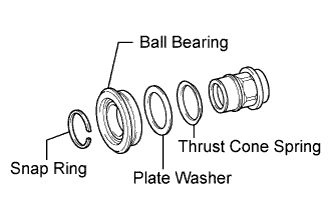

Remove the clutch release hub ball bearing, thrust cone spring plate washer and thrust cone spring.
 |
| 7. REMOVE RELEASE FORK SUPPORT |

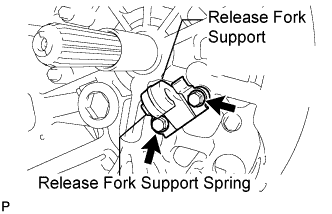

Remove the 2 bolts and release fork support from the transmission unit.
 |
Remove the release fork support spring from the release fork support.
