Engine Rear Oil Seal Removal

Engine. Lexus Is250, Is220D. Gse20 Ale20
4Gr-Fse Engine Mechanical. Lexus Is250, Is220D. Gse20 Ale20

  1. REMOVE MANUAL TRANSMISSION ASSEMBLY (for Manual Transmission)

  2. REMOVE AUTOMATIC TRANSMISSION ASSEMBLY (for Automatic Transmission)

  3. REMOVE FLYWHEEL SUB-ASSEMBLY (for Manual Transmission)

  4. REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY (for Automatic Transmission)

  5. REMOVE ENGINE REAR OIL SEAL

Engine Rear Oil Seal -- Removal



1. REMOVE MANUAL TRANSMISSION ASSEMBLY (for Manual Transmission)
HINT:
Click here.


2. REMOVE AUTOMATIC TRANSMISSION ASSEMBLY (for Automatic Transmission)
HINT:
Click here.


3. REMOVE FLYWHEEL SUB-ASSEMBLY (for Manual Transmission)


    Lexus Is250, Is220D. Gse20 Ale20.4Gr-Fse Engine Mechanical.Engine.Engine Rear Oil Seal Removal

  1. Using SST, hold the crankshaft.

    SST
    09213-70011(09213-70020)
    09330-00021


    Lexus Is250, Is220D. Gse20 Ale20

  1. Remove the 8 bolts and the flywheel.



4. REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY (for Automatic Transmission)


    Lexus Is250, Is220D. Gse20 Ale20.4Gr-Fse Engine Mechanical.Engine.Engine Rear Oil Seal Removal

  1. Using SST, hold the crankshaft.

    SST
    09213-70011(09213-70020)
    09330-00021


    Lexus Is250, Is220D. Gse20 Ale20

  1. Remove the 8 bolts, front spacer, drive plate and rear spacer.



5. REMOVE ENGINE REAR OIL SEAL


    Lexus Is250, Is220D. Gse20 Ale20.4Gr-Fse Engine Mechanical.Engine.Engine Rear Oil Seal Removal

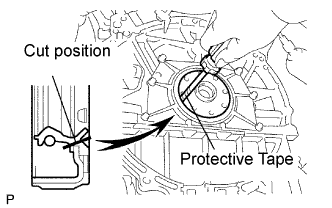

  1. Using a knife, cut through the oil seal lip.

  1. Using a screwdriver with its tip taped, pry out the oil seal.

    HINT:
    Tape the screwdriver tip before use.
    NOTICE:
    After the removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
