Engine Rear Oil Seal Installation

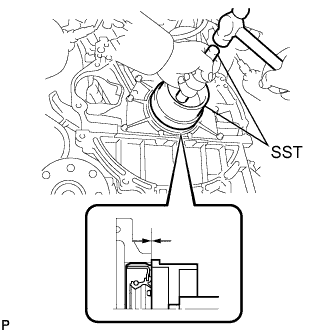

Using SST and a hammer, tap in the oil seal until its surface is flush with the rear oil seal retainer edge.

SST

09223-15030
09950-70010(09951-07150)

NOTICE:

1. Wipe off extra grease of the crankshaft.

2. Keep the lip free of foreign matter.

3. Do not tap on the oil seal at an angle.


Hold the crankshaft with SST.

SST

09213-70011(09213-70020)
09330-00021

Using several steps, install and tighten 8 new bolts uniformly in the sequence shown in the illustration.

Torque:

73 N*m{741 kgf*cm, 54 ft.*lbf}

NOTICE:

1. Do not reuse the flywheel installation bolts. Be sure to check the tightening torque within 5 minutes after tightening.

2. Do not impact or damage the flywheel installation bolts. Be sure to handle them carefully.

3. Make sure that the seating surface of the flywheel installation bolts and installation surfaces of the crankshaft and flywheel are free of oil or foreign matter.


Using SST, hold the crankshaft.

SST

09213-70011(09213-70020)
09330-00021

Apply adhesive to 2 or 3 threads of the mounting bolts ends.

Adhesive:

Part No. 08833-00070, THREE BOND 1324 or equivalent

Install the front spacer, drive plate and rear spacer on the crankshaft.

Install and tighten the 8 mounting bolts uniformly in several steps.

Torque:

83 N*m{846 kgf*cm, 61 ft.*lbf}

NOTICE:

Do not start the engine for at least 1 hour after installing.
