Rear Propeller Shaft Assembly (For 2Ad-Fhv) Disassembly

Drive Line. Lexus Is250, Is220D. Gse20 Ale20
Propeller Shaft. Lexus Is250, Is220D. Gse20 Ale20

  1. REMOVE PROPELLER INTERMEDIATE SHAFT

  2. REMOVE NO. 1 CENTER SUPPORT BEARING ASSEMBLY

Rear Propeller Shaft Assembly (For 2Ad-Fhv) -- Disassembly



1. REMOVE PROPELLER INTERMEDIATE SHAFT


    Lexus Is250, Is220D. Gse20 Ale20.Propeller Shaft.Propeller Shaft System.Rear Propeller Shaft Assembly (For 2Ad-Fhv) Disassembly

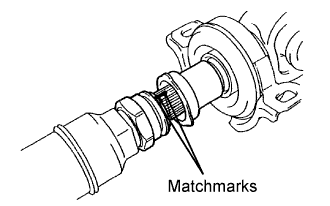

  1. Put matchmarks on the intermediate shaft and propeller shaft.

  1. Separate the intermediate shaft and propeller shaft.

    NOTICE:
    Be careful not to damage the spline.

  1. Remove the adjusting nut from the intermediate shaft.



    Lexus Is250, Is220D. Gse20 Ale20.Propeller Shaft.Propeller Shaft System.Rear Propeller Shaft Assembly (For 2Ad-Fhv) Disassembly

  1. Remove the dust boot from the propeller shaft.

    HINT:
    If the dust boot is to be reused, remove it after wrapping vinyl tape around the spline so that it will not be damaged.


2. REMOVE NO. 1 CENTER SUPPORT BEARING ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

  1. Using a snap ring expander, remove the snap ring.



    Lexus Is250, Is220D. Gse20 Ale20.Propeller Shaft.Propeller Shaft System.Rear Propeller Shaft Assembly (For 2Ad-Fhv) Disassembly

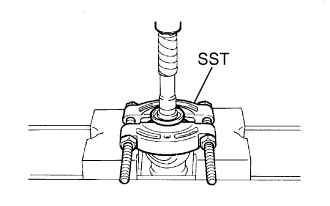

  1. Using SST and a press, remove the No. 1 center support bearing assembly and No. 2 dust deflector.

    SST
    09950-00020


    Lexus Is250, Is220D. Gse20 Ale20.Propeller Shaft.Propeller Shaft System.Rear Propeller Shaft Assembly (For 2Ad-Fhv) Disassembly

  1. Using SST and a press, remove the No. 1 dust deflector.

    SST
    09950-00020
