Rear Propeller Shaft Assembly (For 2Ad-Fhv) Removal

Drive Line. Lexus Is250, Is220D. Gse20 Ale20
Propeller Shaft. Lexus Is250, Is220D. Gse20 Ale20

  1. REMOVE FRONT EXHAUST PIPE ASSEMBLY

  2. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR

  3. REMOVE OUTSIDE AIR GUIDE PLATE RH

  4. REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY

Rear Propeller Shaft Assembly (For 2Ad-Fhv) -- Removal



1. REMOVE FRONT EXHAUST PIPE ASSEMBLY
(Click here)


2. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR


    Lexus Is250, Is220D. Gse20 Ale20.Propeller Shaft.Propeller Shaft System.Rear Propeller Shaft Assembly (For 2Ad-Fhv) Removal

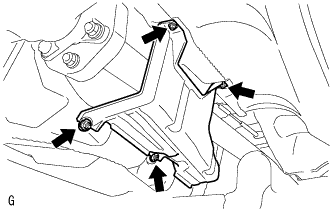

  1. Remove the 4 nuts and front No. 1 floor heat insulator.



3. REMOVE OUTSIDE AIR GUIDE PLATE RH


    Lexus Is250, Is220D. Gse20 Ale20

  1. Remove the 4 nuts and outside air guide plate RH.



4. REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20.Propeller Shaft.Propeller Shaft System.Rear Propeller Shaft Assembly (For 2Ad-Fhv) Removal

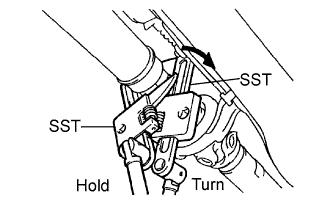

  1. Using SST, loosen the adjusting nut until it can be turned by hand.

    SST
    09922-10010
    HINT:
    Use 2 of the same type of SST.


    Lexus Is250, Is220D. Gse20 Ale20.Propeller Shaft.Propeller Shaft System.Rear Propeller Shaft Assembly (For 2Ad-Fhv) Removal

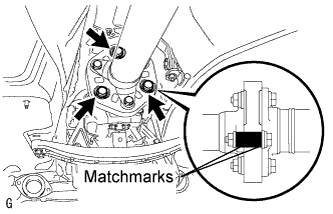

  1. Put matchmarks on the transmission companion flange, flexible coupling and intermediate shaft.

  1. Remove the 3 bolts, 3 washers and 3 nuts.

    NOTICE:
    The propeller shaft and flexible coupling should not be separated.


    Lexus Is250, Is220D. Gse20 Ale20.Propeller Shaft.Propeller Shaft System.Rear Propeller Shaft Assembly (For 2Ad-Fhv) Removal

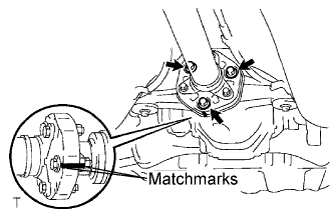

  1. Put matchmarks on the differential companion flange, flexible coupling and propeller shaft.

  1. Remove the 3 bolts, 3 washers and 3 nuts.

    NOTICE:
    The propeller shaft and flexible coupling should not be separated.


    Lexus Is250, Is220D. Gse20 Ale20

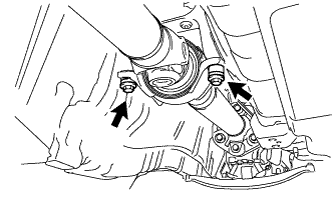

  1. Remove the 2 bolts, 2 center support bearing washers and 2 center support bearing dampers.

    HINT:
    Some vehicles are not equipped with the center support bearing washers.


    Lexus Is250, Is220D. Gse20 Ale20

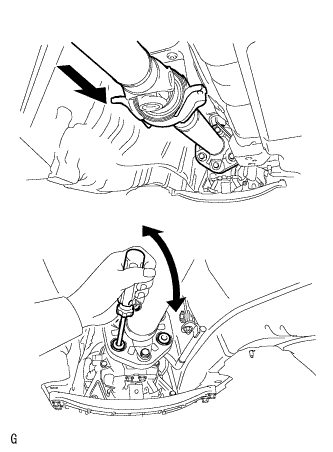

  1. Push the rear propeller shaft straight ahead to compress and pull out the propeller shaft from the centering pin of the differential.

    NOTICE:
    Press the propeller shaft straight ahead to keep the transmission and intermediate shaft aligned straight.
    HINT:
    If it is difficult to separate the flange from the flexible coupling, pry it using a screwdriver.

  1. Pull the propeller shaft outward from the rear of the vehicle.

    NOTICE:
    The intermediate shaft and propeller shaft should not be separated.
