Front Brake Disassembly

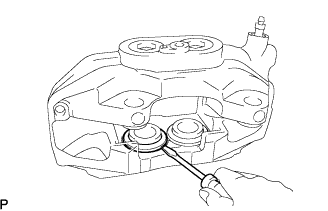

Using a screwdriver, remove the cylinder boot from the disc brake cylinder assembly.

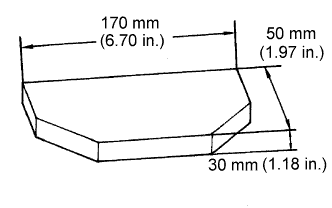

Prepare a wooden plate to hold the pistons.

Place the plate between the pistons and insert a pad into one side.

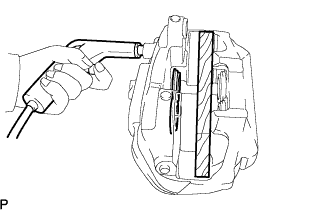

Use compressed air to remove the pistons alternately from the disc brake cylinder assembly.

CAUTION:

Do not place your fingers in front of the pistons when using compressed air.

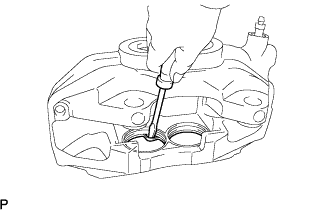

Using a screwdriver, remove the 4 piston seals from the disc brake cylinder assembly.

Remove the front disc brake bleeder plug from the disc brake cylinder assembly.

Put matchmarks on the front disc and the axle hub.

Remove the front disc.
