Front Brake Removal

Brake. Lexus Gs430, Gs300. Uzs190 Grs190
Brake. Lexus Gs430, Gs300. Uzs190 Grs190

  1. REMOVE FRONT WHEEL

  2. DRAIN BRAKE FLUID

  3. REMOVE FRONT DISC BRAKE WITH HOLE PIN

  4. REMOVE FRONT DISC BRAKE ANTI-RATTLE SPRING

  5. REMOVE DISC BRAKE PAD KIT FRONT (PAD ONLY)

  6. DISCONNECT FRONT FLEXIBLE HOSE

  7. REMOVE DISC BRAKE CYLINDER ASSEMBLY

Front Brake -- Removal


HINT:
  1. Use the same procedures for the RH side and LH side.
  2. The procedures listed below are for the LH side.


1. REMOVE FRONT WHEEL


2. DRAIN BRAKE FLUID

  1. Draw out fluid with syringe.

    NOTICE:
    Wash brake fluid off immediately if it is spilled on any painted surfaces.


3. REMOVE FRONT DISC BRAKE WITH HOLE PIN


    Lexus Gs430, Gs300. Uzs190 Grs190

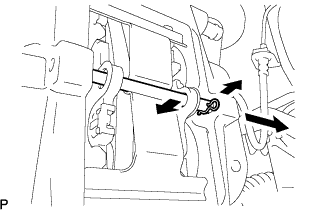

  1. Remove the clip.

  1. Remove the front disc brake anti-rattle with hole pin while pushing on the anti-rattle spring.



4. REMOVE FRONT DISC BRAKE ANTI-RATTLE SPRING
NOTICE:
The anti-rattle spring and clip can be used again if they have sufficient rebound, no deformation, cracks or wear, and have had all rust, dirt and foreign particles cleaned off.


5. REMOVE DISC BRAKE PAD KIT FRONT (PAD ONLY)

  1. Remove the 2 pads and the 2 anti-squeal shims from each pad.



6. DISCONNECT FRONT FLEXIBLE HOSE


    Lexus Gs430, Gs300. Uzs190 Grs190.Brake.Brake System.Front Brake Removal

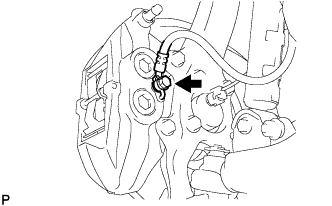

  1. Remove the union bolt and gasket from the disc brake cylinder assembly, then disconnect the front flexible hose from the disc brake cylinder assembly.



7. REMOVE DISC BRAKE CYLINDER ASSEMBLY


    Lexus Gs430, Gs300. Uzs190 Grs190.Brake.Brake System.Front Brake Removal

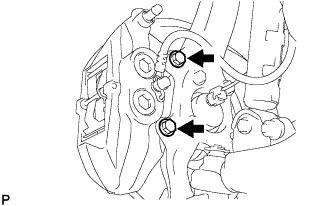

  1. Remove the 2 bolts and disc brake cylinder assembly from the knuckle.
