Brake System System Diagram
Brake. Lexus Gs430, Gs300. Uzs190 Grs190
Brake. Lexus Gs430, Gs300. Uzs190 Grs190
Brake System -- System Diagram |
- HINT:

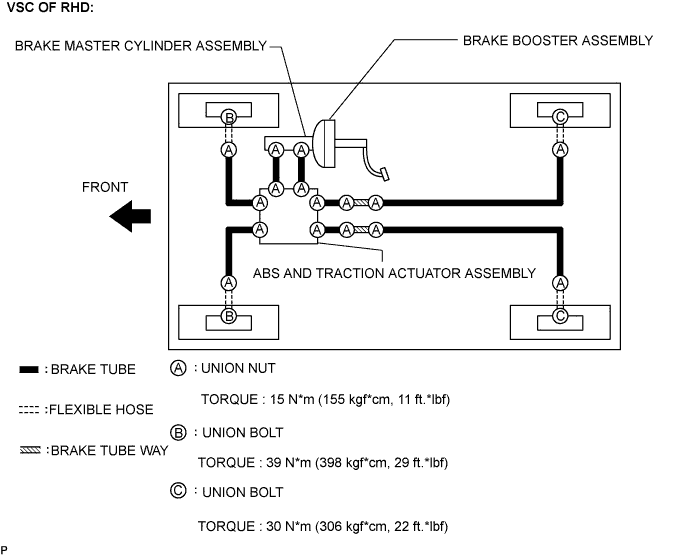

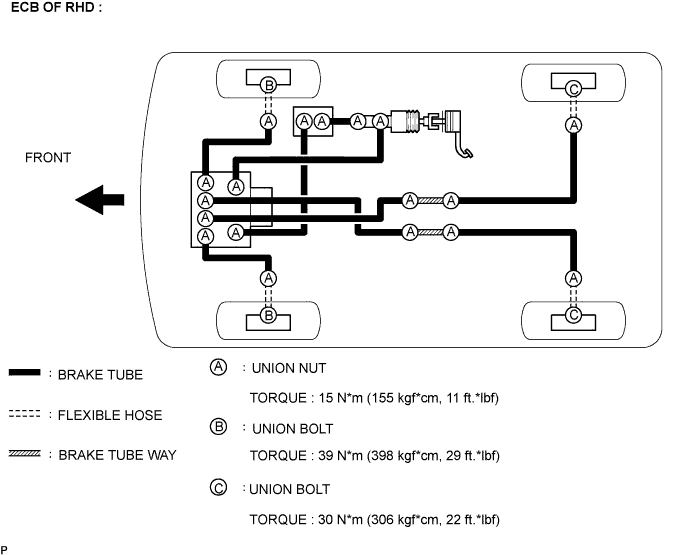

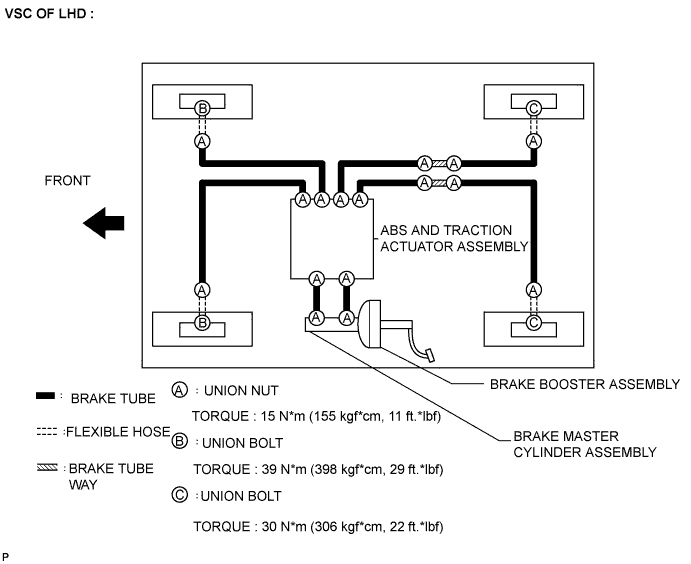

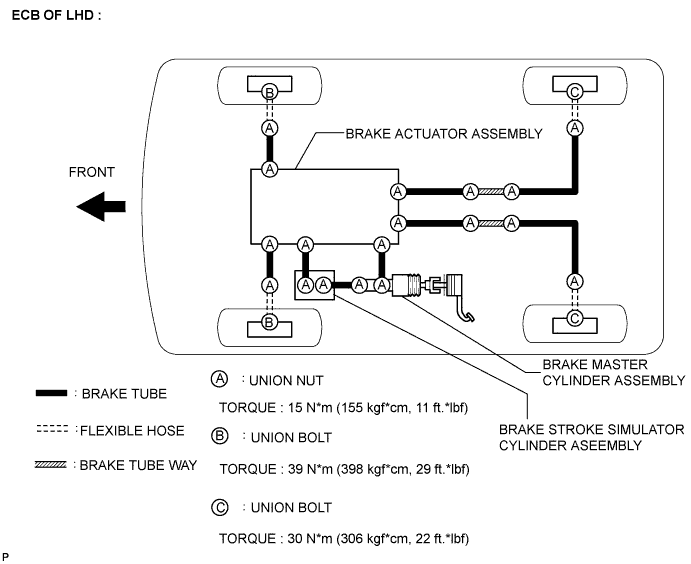

- See the layout drawing to confirm the locations and tightening torque of flexible hoses and brake tubes.
