Door Control Receiver On-Vehicle Inspection

Body Electrical. Lexus Gs430, Gs300. Uzs190 Grs190
Door Lock. Lexus Gs430, Gs300. Uzs190 Grs190

  1. CHECK DOOR CONTROL RECEIVER

Door Control Receiver -- On-Vehicle Inspection



1. CHECK DOOR CONTROL RECEIVER


Lexus Gs430, Gs300. Uzs190 Grs190.Door Lock.Power Door Lock Control System.Door Control Receiver On-Vehicle Inspection

  1. Disconnect the V36 receiver connector.

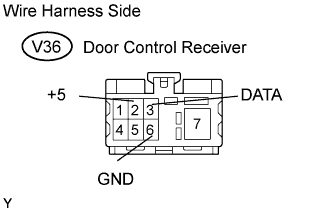

  1. Measure the voltage of the wire harness side connector.

    Standard voltage:
    Tester Connection
    		Specified Condition
    V36-2 (+5) - Body ground
    		4.6 to 5.4 V
    V36-6 (GND) - Body ground
    		Below 1 V
    1. If the result is not as specified, there may be a malfunction on the wire harness side.

  1. Reconnect the V36 connector.

  1. Measure the voltage of the connector.

    Standard voltage:
    Tester Connection
    		 Condition
    		Specified Condition
    V36-3 (DATA) - Body ground
    		 Engine switch off, all doors closed and transmitter switch not pressed
    		10 to 14 V
    V36-3 (DATA) - Body ground
    		 Engine switch off, all doors closed and transmitter switch pressed
    		Pulse generation
    1. If the result is not as specified, the receiver may have a malfunction.
