Entry And Start System On-Vehicle Inspection

Check the entry unlock function.

1. Use the wireless lock operation to lock the doors. With the key in your possession, touch a door's outside handle (touch sensor) and check that the door unlocks.


Check the entry unlock operation's detection area.

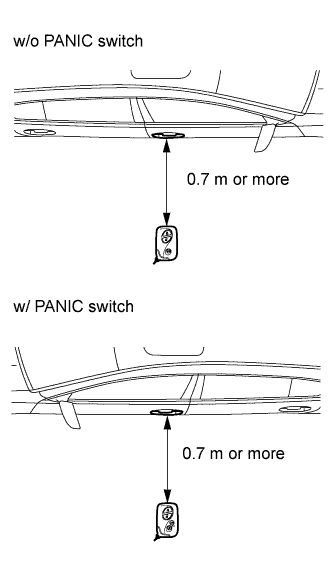

1. Step 1: Hold the key at the same height as the door's outside handle (approximately 0.8 m (2.6 ft.)). Pay attention to the direction of the key in the illustration.


2. Step 2: Check that when the key is brought within 0.7 to 1.0 m (2.3 to 3.3 ft.) of the vehicle, the system enters unlock standby mode.


   HINT:

   Unlock standby mode is signified by the key's red LED illuminating.

3. Step 3: After the system enters unlock standby mode, touch the outside handle's sensor within 3 seconds. Check that the door unlocks.


   NOTICE:

   The key cannot communicate with the system within a 0.2 m (0.6 ft.) radius of each outside handle.





4. Step 4: Repeat step 2 and step 3 for the remaining doors.

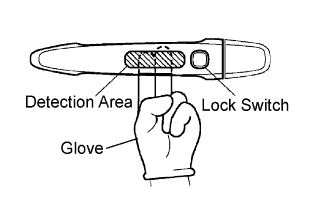

5. Step 5: Inspect the door electrical key oscillator's response sensitivity. Wear protective gloves, set the system to unlock standby mode, and check that touching the inner side of the outside handle (the highlighted area in the illustration) with your finger causes the door to unlock.


   NOTICE:

   When touching the highlighted area, tapping too quickly or having extended contact may not trigger the sensor. In such a case, the door will not unlock.

6. Step 6: Repeat step 5 for the remaining doors.


Check the entry lock function.

1. Step 1: Close all of the vehicle's doors. With the key in your possession outside of the vehicle, check that pressing the lock switch locks the doors.


2. Step 2: Inspect the entry lock operation's detection area and the indoor electrical key antenna for wave leaks. Hold the key at a height of 1 m (3.3 ft.) (0.1 m (0.3 ft.) above the lower edge of the window frame). Pay attention to the direction and position of the key in the illustration. Check that when the key is approximately 0.3 m (0.9 ft.) from the vehicle and the lock switch is pressed, the front doors lock and the warning buzzer (for when the key is forgotten) does not sound. If the warning buzzer sounds, the indoor electrical key antenna may have a wave leak.


   HINT:

   Due to the key being unable to communicate with the system within a 0.2 m (0.6 ft.) distance from the outside handle, do not press the lock switch with the same hand that is holding the key. The doors will not lock.

3. Step 3: Repeat step 1 and step 2 for the remaining doors.


Check the entry luggage compartment door open function.

1. Close the luggage compartment door. With the key in your possession, check that pressing the power luggage door open switch opens the luggage compartment door.

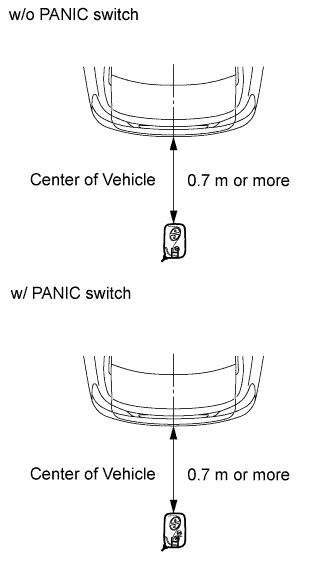

2. Inspect the entry luggage compartment door open operation's detection area. Hold the key at the same height as the power luggage door open switch (approximately 0.8 m (2.6 ft.)) and aligned with the center of the rear of the vehicle. Pay attention to the direction of the key shown in the illustration. Check that the when the key is brought within 0.7 to 1.0 m (2.3 to 3.3 ft.) of the vehicle, pressing the power luggage door open switch opens the luggage compartment door.


Check the entry ignition function.

1. When the engine is off:
   With the key in your possession and the brake pedal depressed, check that pressing the engine switch releases the steering wheel lock and starts the engine.


   HINT:

   The engine can be started only when the engine switch indicator illuminates in green.





2. When the engine is running:
   With the key in your possession, check that pressing the engine switch stops the engine and activates the steering wheel lock.


   HINT:

   The shift position must be P to be able to stop the engine.

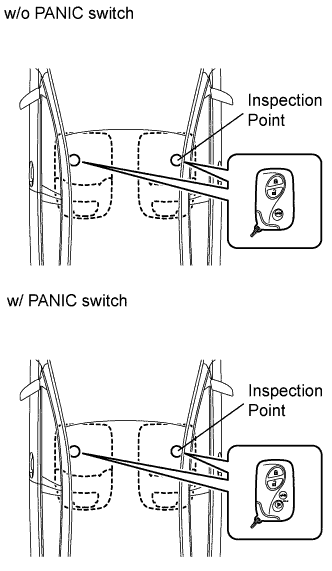

3. Inspect the entry ignition operation's detection area. Pay attention to the direction of the key in the illustration. When the key is in either of the 2 locations in the illustration, check that the engine can start.


   NOTICE:

   The engine cannot be started when the key is on the instrument panel or rear package tray, or in the glove box.

Check the key lock-in prevention function.

1. Place the key in the luggage compartment with all doors locked. Check that: 1) closing the luggage compartment door triggers the key's wireless buzzer (which lasts approximately 2 seconds), and 2) pressing the power luggage door open switch opens the luggage compartment door.

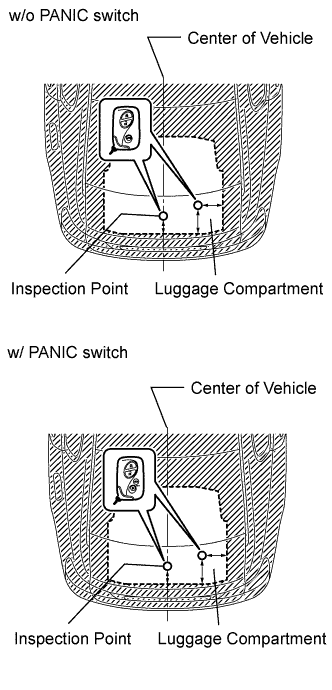

2. Inspect the key lock-in prevention's detection area. Pay attention to the direction of the key shown in the illustration. When the key is in either of the 2 locations in the illustration, check that: 1) closing the luggage compartment door sounds the key's wireless buzzer, and 2) pressing the power luggage door open switch opens the luggage compartment door.


   NOTICE:

   If the key is inside a metal storage item, such as a metal briefcase or metal box, the key will not be able to be detected by the system.

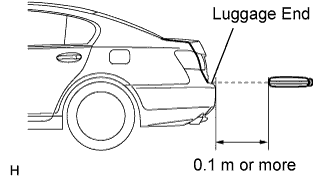

3. Inspect the key lock-in prevention's detection area and the entry door control receiver for wave leaks. Hold the key at the same height as the lower edge of the luggage compartment door and aligned with the center of the rear of the vehicle. Pay attention to the direction and position of the key shown in the illustration. Check that when the key is over 0.1 m (0.3 ft.) from the vehicle's rear bumper, the key's wireless buzzer does not sound.
   If the warning buzzer sounds, the entry door control receiver may have a wave leak.


Check the key cancel function.

1. While the engine switch is on (IG), check that the power luggage door open switch is the only switch in the entry and start system that can be operated.


2. While the key cancel function (entry and start system cancel function) is ON, check that all functions in the entry and start system cannot be operated.


Check the answer-back function (hazard warning light flashing and buzzer sounding).

Check that the key reminder warning buzzer sounds.

1. Carry the key in the vehicle and close the driver side door. Then turn the engine switch off or on (ACC).


2. Open the driver side door and check that the buzzer sounds intermittently.


Check that the key reminder warning buzzer stops.

1. When the buzzer is sounding, check that the buzzer stops sounding if either of the following are performed:


   1. Close the driver side door (front door courtesy light switch is off).

   2. Turn the engine switch on (IG).
