Height Control Sensor Removal

Body Electrical. Lexus Gs430, Gs300. Uzs190 Grs190
Lighting. Lexus Gs430, Gs300. Uzs190 Grs190

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

  2. REMOVE HEIGHT CONTROL SENSOR SUB-ASSEMBLY FRONT

  3. REMOVE HEIGHT CONTROL SENSOR SUB-ASSEMBLY REAR

Height Control Sensor -- Removal


  1. The procedures listed below are for the LH side.
HINT:
  1. Use the same procedures for the RH side and LH side.


1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.


2. REMOVE HEIGHT CONTROL SENSOR SUB-ASSEMBLY FRONT

  1. Remove the front tire.

  1. Disconnect the connector.



    Lexus Gs430, Gs300. Uzs190 Grs190

  1. 2WD:
    Remove the nut and sensor link from the lower arm.



    Lexus Gs430, Gs300. Uzs190 Grs190

  1. 4WD:
    Remove the bolt and sensor link from the lower arm.



    Lexus Gs430, Gs300. Uzs190 Grs190

  1. Remove the 2 bolts and sensor.



3. REMOVE HEIGHT CONTROL SENSOR SUB-ASSEMBLY REAR

  1. Remove the rear tire.

  1. Disconnect the connector.



    Lexus Gs430, Gs300. Uzs190 Grs190.Lighting.Lighting System.Height Control Sensor Removal

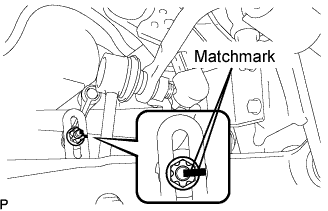

  1. Put matchmarks on the sensor link and bracket.



    Lexus Gs430, Gs300. Uzs190 Grs190

  1. Remove the 2 bolts and sensor.
