Fog Light Assembly Removal

Body Electrical. Lexus Gs430, Gs300. Uzs190 Grs190
Lighting. Lexus Gs430, Gs300. Uzs190 Grs190

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

  2. REMOVE COOL AIR INTAKE DUCT SEAL

  3. REMOVE ENGINE UNDER COVER

  4. REMOVE FRONT BUMPER COVER

  5. REMOVE FOG LIGHT ASSEMBLY

  6. REMOVE FOG LIGHT BULB

Fog Light Assembly -- Removal


HINT:
  1. Use the same procedures for the RH side and LH side.
  2. The procedures listed below are for the LH side.


1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.


2. REMOVE COOL AIR INTAKE DUCT SEAL


Lexus Gs430, Gs300. Uzs190 Grs190

  1. Using a clip remover, remove the 7 clips and duct seal.



3. REMOVE ENGINE UNDER COVER


Lexus Gs430, Gs300. Uzs190 Grs190

  1. Using a clip remover, remove the 3 clips.

  1. Remove the 10 screws and under cover.



4. REMOVE FRONT BUMPER COVER

  1. Using a clip remover, remove the 2 clips.

    HINT:
    Put protective tape under the front fender.


    Lexus Gs430, Gs300. Uzs190 Grs190

  1. Remove the 6 screws and 5 bolts.



    Lexus Gs430, Gs300. Uzs190 Grs190.Lighting.Lighting System.Fog Light Assembly Removal

  1. Pull the bumper cover to detach the 3 claws on the LH side.

  1. Pull the bumper cover to detach the 3 claws on the RH side and remove the bumper cover.

  1. w/ Clearance sonar system:
    Disconnect the ultrasonic sensor connector.



5. REMOVE FOG LIGHT ASSEMBLY


Lexus Gs430, Gs300. Uzs190 Grs190.Lighting.Lighting System.Fog Light Assembly Removal

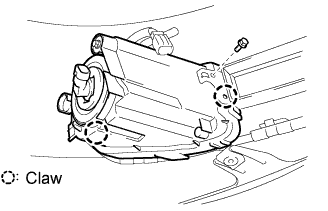

  1. Remove the bolt.

  1. Detach the 2 claws and remove the fog light.



6. REMOVE FOG LIGHT BULB


Lexus Gs430, Gs300. Uzs190 Grs190

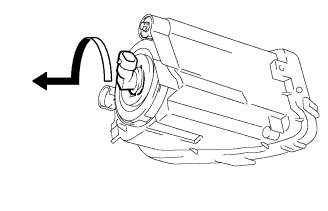

  1. Turn the fog light bulb in the direction indicated by the arrow and remove it.
