Fog Light Assembly Installation
Lighting. Lexus Gs430, Gs300. Uzs190 Grs190
INSTALL FOG LIGHT BULB
INSTALL FOG LIGHT ASSEMBLY
INSTALL FRONT BUMPER COVER
INSTALL ENGINE UNDER COVER
INSTALL COOL AIR INTAKE DUCT SEAL
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
ADJUST FOG LIGHT AIM
Fog Light Assembly -- Installation |
- HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
| 1. INSTALL FOG LIGHT BULB |

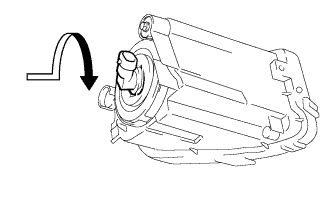

Turn the fog light bulb in the direction indicated by the arrow and install it.
| 2. INSTALL FOG LIGHT ASSEMBLY |
Attach the 2 claws to install the fog light.
Install the bolt.
| 3. INSTALL FRONT BUMPER COVER |
Connect the ultrasonic sensor connector.
Attach the 3 claws on the LH side.
Attach the 3 claws on the RH side.
Install the bumper cover with the 2 clips, 6 screws and 5 bolts.
| 4. INSTALL ENGINE UNDER COVER |
Install the under cover with the 3 clips and 10 screws.
| 5. INSTALL COOL AIR INTAKE DUCT SEAL |
Install the duct seal with the 7 clips.
| 6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL |
| 7. PERFORM INITIALIZATION |
Perform initialization (Click here).
- NOTICE:
- Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
The fog light aim can be adjusted by moving the aiming screw in the vertical direction.
- HINT:
- The optical aim moves upward when turning the screwdriver clockwise, while it moves downward when turning the screwdriver counterclockwise.
