License Plate Light Assembly Removal

Body Electrical. Lexus Gs430, Gs300. Uzs190 Grs190
Lighting. Lexus Gs430, Gs300. Uzs190 Grs190

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

  2. REMOVE LUGGAGE COMPARTMENT DOOR COVER

  3. REMOVE LUGGAGE DOOR OPENING SWITCH ASSEMBLY

  4. REMOVE LUGGAGE COMPARTMENT DOOR GARNISH SUB-ASSEMBLY OUTSIDE

  5. REMOVE LICENSE PLATE LIGHT ASSEMBLY

  6. REMOVE BACK DOOR GARNISH RETAINER SUB-ASSEMBLY

License Plate Light Assembly -- Removal


HINT:
  1. Use the same procedures for the RH side and LH side.
  2. The procedures listed below are for the LH side.


1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.


2. REMOVE LUGGAGE COMPARTMENT DOOR COVER


Lexus Gs430, Gs300. Uzs190 Grs190.Lighting.Lighting System.License Plate Light Assembly Removal

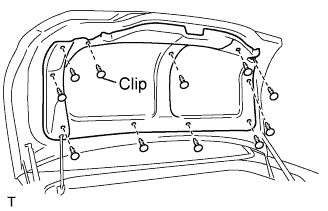

  1. Using a clip remover, remove the 10 clips and cover.



3. REMOVE LUGGAGE DOOR OPENING SWITCH ASSEMBLY


Lexus Gs430, Gs300. Uzs190 Grs190

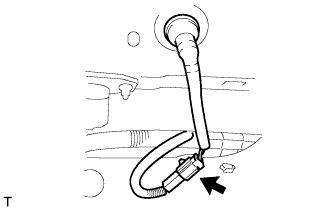

  1. Disconnect the connector.

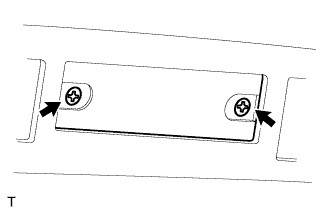

  1. Remove the 2 screws and switch from the luggage compartment door.



4. REMOVE LUGGAGE COMPARTMENT DOOR GARNISH SUB-ASSEMBLY OUTSIDE


    Lexus Gs430, Gs300. Uzs190 Grs190

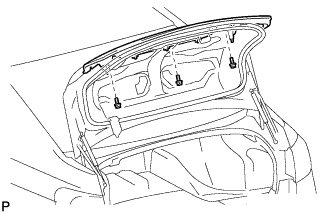

  1. Remove the 3 nuts.



    Lexus Gs430, Gs300. Uzs190 Grs190.Lighting.Lighting System.License Plate Light Assembly Removal

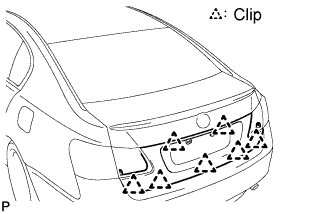

  1. Detach the 7 clips and remove the garnish.



5. REMOVE LICENSE PLATE LIGHT ASSEMBLY


Lexus Gs430, Gs300. Uzs190 Grs190

  1. Disconnect the connector.



    Lexus Gs430, Gs300. Uzs190 Grs190.Lighting.Lighting System.License Plate Light Assembly Removal

  1. Remove the screw and license plate light from the luggage compartment door.



6. REMOVE BACK DOOR GARNISH RETAINER SUB-ASSEMBLY


Lexus Gs430, Gs300. Uzs190 Grs190.Lighting.Lighting System.License Plate Light Assembly Removal

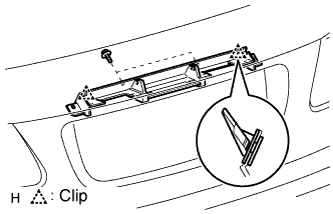

  1. Remove the 2 screws.

  1. Remove the 2 clips and retainer from the luggage component door.
