License Plate Light Assembly Installation

Body Electrical. Lexus Gs430, Gs300. Uzs190 Grs190
Lighting. Lexus Gs430, Gs300. Uzs190 Grs190

  1. INSTALL BACK DOOR GARNISH RETAINER SUB-ASSEMBLY

  2. INSTALL LICENSE PLATE LIGHT ASSEMBLY

  3. INSTALL LUGGAGE COMPARTMENT DOOR GARNISH SUB-ASSEMBLY OUTSIDE

  4. INSTALL LUGGAGE COMPARTMENT DOOR COVER

  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

  6. PERFORM INITIALIZATION

License Plate Light Assembly -- Installation


HINT:
  1. Use the same procedures for the RH side and LH side.
  2. The procedures listed below are for the LH side.


1. INSTALL BACK DOOR GARNISH RETAINER SUB-ASSEMBLY


Lexus Gs430, Gs300. Uzs190 Grs190.Lighting.Lighting System.License Plate Light Assembly Installation

  1. Install the 2 clips and retainer to the luggage compartment door.

  1. Install the 2 screws.



2. INSTALL LICENSE PLATE LIGHT ASSEMBLY


Lexus Gs430, Gs300. Uzs190 Grs190.Lighting.Lighting System.License Plate Light Assembly Installation

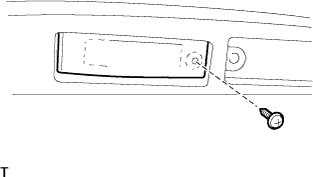

  1. Install the license plate light and screw to the luggage compartment door..



    Lexus Gs430, Gs300. Uzs190 Grs190

  1. Connect the connector.



3. INSTALL LUGGAGE COMPARTMENT DOOR GARNISH SUB-ASSEMBLY OUTSIDE


    Lexus Gs430, Gs300. Uzs190 Grs190.Lighting.Lighting System.License Plate Light Assembly Installation

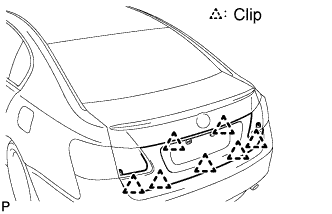

  1. Attach the 7 clips to install the garnish.



    Lexus Gs430, Gs300. Uzs190 Grs190

  1. Install the garnish with the 3 nuts.



4. INSTALL LUGGAGE COMPARTMENT DOOR COVER


    Lexus Gs430, Gs300. Uzs190 Grs190

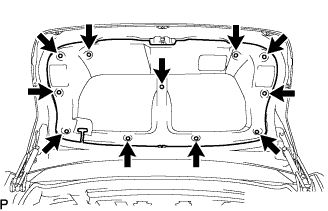

  1. Install the door cover with the 11 clips.



5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL


6. PERFORM INITIALIZATION

  1. Perform initialization (Click here ).

    NOTICE:
    Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
