DTC B2002 Open in Seat Belt Motor RH Circuit


DESCRIPTION

The seat belt control ECU receives information from the seat belt control ECU (distance control ECU) through CAN communication and tightens the seat by operating the motor in the front seat outer belt assembly RH.
CAUTION:
The pretensioner is built into the front seat outer belt assembly RH. Be sure to follow the correct inspection procedure, as failure to follow the correct procedure (such as inspection of incorrect connectors) may activate the pretensioner.

DTC No.
DTC Detecting Condition
Trouble Area
B2002
Open in the seat belt motor RH circuit continues for 1 second or more
  1. Front seat outer belt assembly RH
  2. Wire harness (seat belt control ECU - front seat outer belt assembly RH)
  3. Seat belt control ECU

WIRING DIAGRAM

Reter to the DTC B2000 (Click here).

INSPECTION PROCEDURE

NOTICE:
When the seat belt control ECU is replaced with a new one, Active Test must be performed (Click here).

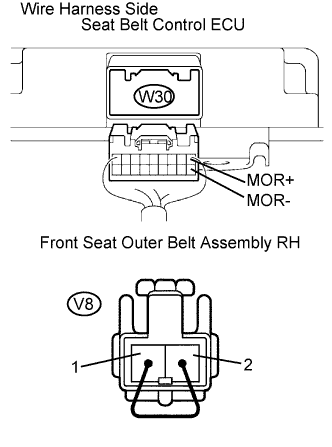

1.CHECK WIRE HARNESS (FRONT SEAT OUTER BELT ASSEMBLY RH - SEAT BELT CONTROL ECU)


    Lexus Gs430, Gs300. Uzs190 Grs190.Pre-Crash Safety.Pre-Crash Safety System. Dtc B2002 Open In Seat Belt Motor Rh Circuit

  1. Turn the engine switch off.

  1. Disconnect the cable from the negative (-) battery terminal.

  1. Disconnect the W30 ECU connector.

  1. Disconnect the V8 belt connector.

  1. Using a service wire, connect V8-1 and V8-2 of the connector on the front seat outer belt assembly RH .

    NOTICE:
    Do not forcibly insert a service wire into the terminals of the connector.

  1. Measure the resistance of the wire harness side connector.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    W30-1 (MOR+) - W30-10 (MOR-)
    		Always
    		Below 1 Ω


NG
REPAIR OR REPLACE HARNESS AND CONNECTOR
OK


2.INSPECT FRONT SEAT OUTER BELT ASSEMBLY RH


    Lexus Gs430, Gs300. Uzs190 Grs190.Pre-Crash Safety.Pre-Crash Safety System. Dtc B2002 Open In Seat Belt Motor Rh Circuit

  1. Measure the resistance of the connector.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    V8-1 - V8-2
    		Always
    		Below 1 Ω


NG
REPLACE FRONT SEAT OUTER BELT ASSEMBLY RH
OK

REPLACE SEAT BELT CONTROL ECU
