Dtc B1266 Instrument Panel System Communication Bus Malfunction (+B Short)
DESCRIPTION
WIRING DIAGRAM
INSPECTION PROCEDURE
CHECK DIAGNOSTIC TROUBLE CODE (A ECU)
CHECK DIAGNOSTIC TROUBLE CODE (B ECU)
CHECK WIRE HARNESS BETWEEN A ECU AND B ECU
CHECK DIAGNOSTIC TROUBLE CODE (C ECU)
CHECK WIRE HARNESS BETWEEN B ECU AND C ECU
CHECK WIRE HARNESS BETWEEN GATEWAY ECU AND A ECU OR C ECU
DTC B1266 Instrument Panel System Communication Bus Malfunction (+B Short) |
DTC B1267 Instrument Panel System Communication Bus Malfunction (GND Short) |
DESCRIPTION
When a +B or body ground short circuit is detected on the instrument panel system communication bus (BEAN), the instrument panel system communication bus (BEAN) is disabled and a DTC is output.DTC No.
| DTC Detection Condition
| Trouble Area
|
B1266
| Instrument panel system communication circuit and +B battery system short
| - Network gateway ECU
- Cowl side junction block ECU LH
- Integration control and panel assembly
- A/C amplifier assembly No. 2 (A/C ECU)
- Airbag sensor assembly center
- Cowl side junction block RH
- Center junction block RH
- Combination switch assembly (windshield wiper switch)
- Wire harness
|
B1267
| Instrument panel system communication circuit and body ground short
| - Network gateway ECU
- Cowl side junction block ECU LH
- Integration control and panel assembly
- A/C amplifier assembly No. 2 (A/C ECU)
- Airbag sensor assembly center
- Cowl side junction block RH
- Center junction block RH
- Combination switch assembly (windshield wiper switch)
- Wire harness
|

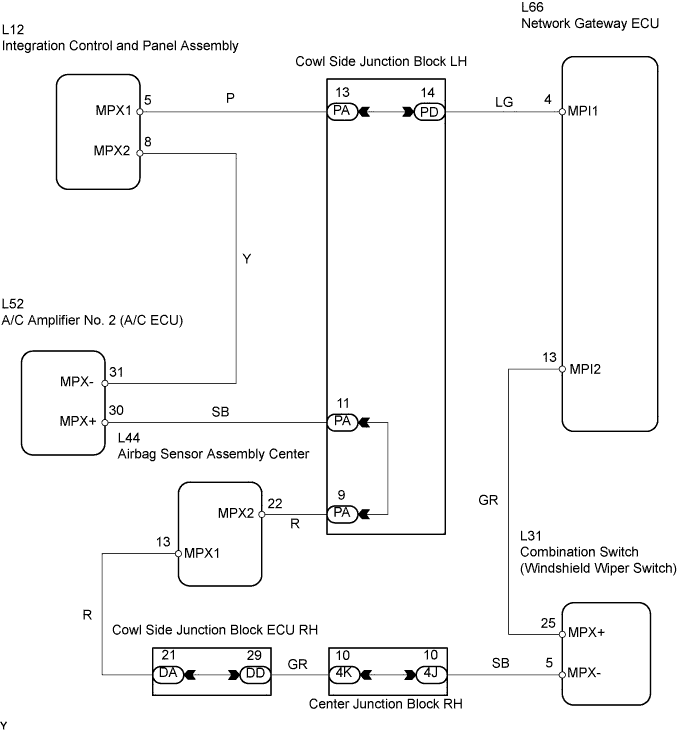

WIRING DIAGRAM
INSPECTION PROCEDURE
1.CHECK DIAGNOSTIC TROUBLE CODE (A ECU) |
Disconnect the A ECU connector and check for DTCs B1266 and B1267.
- OK:
- DTCs B1266 and B1267 are not output.
- NOTICE:
- Reconnect the connector before starting the next check.
- HINT:
- The A ECU in the instrument panel system bus represents the combination switch (windshield wiper switch).
- If the result is as specified, the disconnected A ECU (combination switch (windshield wiper switch)) is malfunctioning.
2.CHECK DIAGNOSTIC TROUBLE CODE (B ECU) |
Disconnect the A ECU and B ECU connectors and check for DTCs B1266 and B1267.
- OK:
- DTCs B1266 and B1267 are not output.
- NOTICE:
- Disconnect the connectors one by one. Reconnect the connectors before starting the next check.
- HINT:

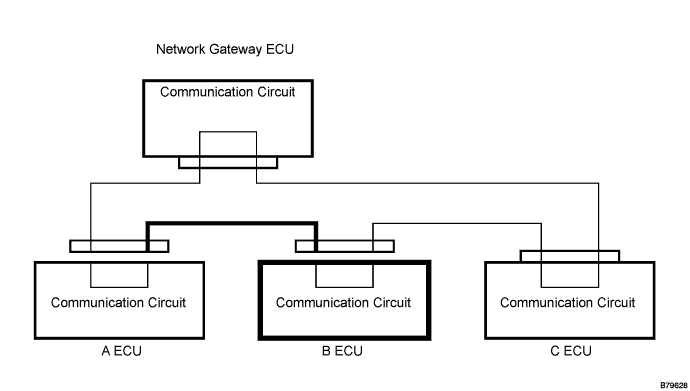

- The B ECU in the instrument panel system bus represents one of the following: airbag sensor assembly center, A/C amplifier No. 2, cowl side junction block RH, center junction block RH.
- If the result is as specified, the disconnected B ECU (one of the ECUs from the above list) or the wire harness between the A ECU and B ECU is malfunctioning.
3.CHECK WIRE HARNESS BETWEEN A ECU AND B ECU |
Disconnect the B ECU connector and check for DTCs B1266 and B1267.
- OK:
- DTCs B1266 and B1267 are not output.
- NOTICE:
- Reconnect the connector before starting the next check.
- HINT:
- If the result is as specified, the wire harness between the A ECU and B ECU is functioning normally but the disconnected B ECU is malfunctioning.
| REPAIR OR REPLACE WIRE HARNESS BETWEEN A ECU AND B ECU |
|
|
4.CHECK DIAGNOSTIC TROUBLE CODE (C ECU) |
Disconnect the B ECU and C ECU connectors and check for DTCs B1266 and B1267.
- OK:
- DTCs B1266 and B1267 are not output.
- NOTICE:
- Disconnect the connectors one by one. Reconnect the connectors before starting the next check.
- HINT:
- The C ECU in the instrument panel system bus represents the integration control and panel assembly.
- If the result is as specified, the disconnected C ECU (integration control and panel assembly) or the wire harness between the B ECU and C ECU is malfunctioning.
5.CHECK WIRE HARNESS BETWEEN B ECU AND C ECU |
Disconnect the C ECU connector and check for DTCs B1266 and B1267.
- OK:
- DTCs B1266 and B1267 are not output.
- NOTICE:
- Reconnect the connector before starting the next check.
- HINT:
- If the result is as specified, the wire harness between the B ECU and C ECU is functioning normally but the disconnected C ECU is malfunctioning.
| REPAIR OR REPLACE WIRE HARNESS BETWEEN B ECU AND C ECU |
|
|
6.CHECK WIRE HARNESS BETWEEN GATEWAY ECU AND A ECU OR C ECU |
Check for a short circuit in B+ or body ground.
Disconnect the A ECU, C ECU and gateway ECU connectors.
Measure the resistance and voltage of the wire harness side connectors.
- Standard voltage:
Tester Connection
| Specified Condition
|
A ECU connector / Network gateway ECU connector - Body ground
| Below 1 V
|
C ECU connector / Network gateway ECU connector - Body ground
| Below 1 V
|
- Standard resistance:
Tester Connection
| Specified Condition
|
A ECU connector / Network gateway ECU connector - Body ground
| 10 kΩ or higher
|
C ECU connector / Network gateway ECU connector - Body ground
| 10 kΩ or higher
|
- HINT:
- The A ECU in the instrument panel system bus represents the combination switch (windshield wiper switch).
- The C ECU in the instrument panel system bus represents the integration control and panel assembly.
| REPAIR OR REPLACE WIRE HARNESS BETWEEN GATEWAY ECU AND A ECU OR C ECU |
|
|
OK |
|
|
|
REPLACE NETWORK GATEWAY ECU |
|
