DTC B1213 Tilt and Telescopic ECU Communication Stop


DESCRIPTION

  1. This DTC is detected when communication between the multiplex tilt and telescopic ECU and the network gateway ECU stops for more than 10 seconds.

DTC No.
DTC Detection Condition
Trouble Area
B1213
Multiplex tilt and telescopic ECU communication stops
  1. Multiplex tilt and telescopic ECU
  1. Wire harness

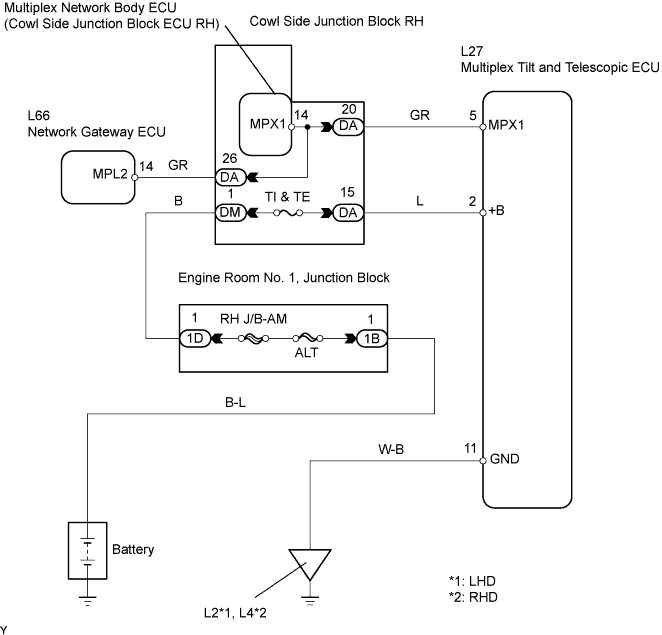

WIRING DIAGRAM


Lexus Gs430, Gs300. Uzs190 Grs190.Multiplex Communication.Multiplex Communication System. Dtc B1213 Tilt And Telescopic Ecu Communication Stop


INSPECTION PROCEDURE

1.CHECK OPERATION

  1. Check that the power tilt and telescopic switch can operate the tilt and telescopic steering column normally.

    OK:
    Power tilt and telescopic switch can operate tilt and telescopic steering column normally.


NG
Go to step 2
OK

REPLACE MULTIPLEX TILT AND TELESCOPIC ECU

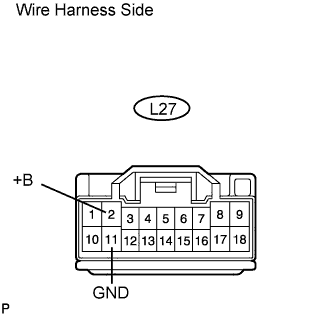

2.CHECK WIRE HARNESS (MULTIPLEX TILT AND TELESCOPIC ECU - BATTERY AND BODY GROUND)
Lexus Gs430, Gs300. Uzs190 Grs190.Multiplex Communication.Multiplex Communication System. Dtc B1213 Tilt And Telescopic Ecu Communication Stop

  1. Disconnect the L27 ECU connector.

  1. Measure the resistance and voltage of the wire harness side connector.

    Standard voltage:
    Tester Connection
    		Specified Condition
    L27-2 (+B) - Body ground
    		10 to 14 V
    Standard resistance:
    Tester Connection
    		Specified Condition
    L27-11 (GND) - Body ground
    		Below 1 Ω


NG
REPAIR OR REPLACE HARNESS AND CONNECTOR
OK

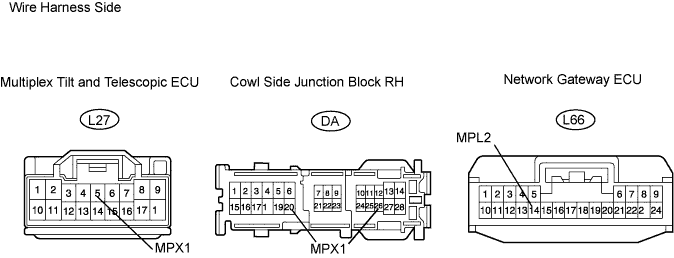

3.CHECK RESISTANCE OF COMMUNICATION LINE

Lexus Gs430, Gs300. Uzs190 Grs190.Multiplex Communication.Multiplex Communication System. Dtc B1213 Tilt And Telescopic Ecu Communication Stop

  1. Disconnect the L27 and L66 ECU connectors.

  1. Disconnect the DA junction block connector.

  1. Measure the resistance of the wire harness side connectors.

    Standard resistance:
    Tester Connection
    		Specified Condition
    L27-5 (MPX1) - DA-20 (MPX1)
    		Below 1 Ω
    L66-14 (MPL2) - DA-26 (MPX1)
    		Below 1 Ω
    Result:
    Result
    		Proceed to
    Both are OK
    		A
    One is OK
    		B
    Both are NG
    		C


B
REPLACE MULTIPLEX TILT AND TELESCOPIC ECU AND HARNESS AND CONNECTOR

C
REPAIR OR REPLACE HARNESS AND CONNECTOR
A

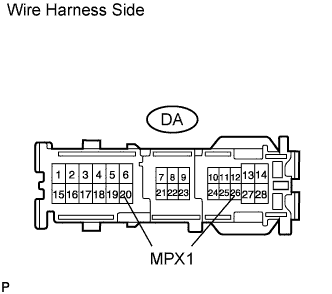

4.INSPECT COWL SIDE JUNCTION BLOCK RH
Lexus Gs430, Gs300. Uzs190 Grs190.Multiplex Communication.Multiplex Communication System. Dtc B1213 Tilt And Telescopic Ecu Communication Stop

  1. Disconnect the DA junction block connector.

  1. Measure the resistance of the wire harness side connector.

    Standard resistance:
    Tester Connection
    		Specified Condition
    DA-20 (MPX1) - DA-26 (MPX1)
    		Below 1 Ω


NG
REPLACE COWL SIDE JUNCTION BLOCK
OK

REPLACE MULTIPLEX TILT AND TELESCOPIC ECU
